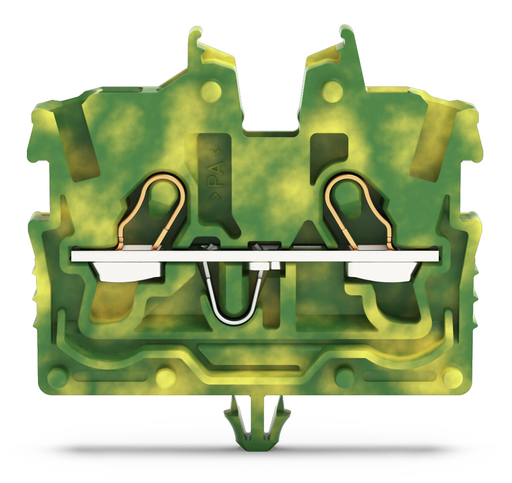

Features

Approvals

• DEKRA Certification B.V., KEMA/KEUR, 71-113957, EN 60998
• Physikalisch Technische Bundesanstalt, ATEX, PTB 19 ATEX 1019 UII 2G Ex eb IIC Gb or I M 2 Ex eb I Mb, EN IEC 60079-0
• Underwriters Laboratories Inc., cURus, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL 7840, EN 60998
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 19.0050U Ex eb IIC Gb or EX eb I Mb, IEC 60079
• CQST/CNEx, CCCEx, 2020312313000289, CNCA-C23-01
• CSA, CSA, 80034182, C22.2 No. 158

Specifications

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 1 mm²
• Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
• Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 9 … 11 mm / 0.35 … 0.43 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 3.5 mm / 0.138 inch
• Height from the surface: 27.2 mm / 1.071 inch
• Depth: 33.2 mm / 1.307 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: Snap-in foot
• Marking level: Center/side marking

Material Data

• Color: Green-yellow
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.000 MJ
• Weight: 2.340 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143964777
• Customs tariff number Sales Organisation Germany: 85369010000
