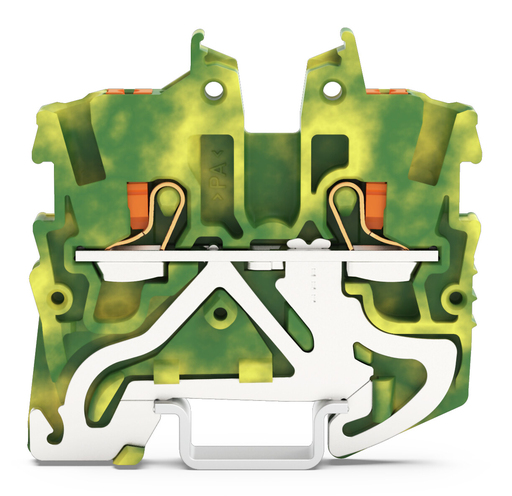

WAGO 2250-1207

2250-1207 WAGO 2250-1207

WAGO 2250-1207
Part # 2250-1207
Manufacturer Wago
Condition New
Price: $ 4.30

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
2-cond. miniature ground terminal block with push-button 1 mm², green-yellow
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-cond. miniature ground terminal block with push-button 1 mm², green-yellow

Features

Approvals

  • Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 19.0050U Ex eb IIC Gb or EX eb I Mb, IEC 60079
  • DEKRA Certification B.V., KEMA/KEUR, 71-113957, EN 60998
  • DEKRA Certification B.V., KEMA/KEUR, 71-113930, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 7839, EN 60947
  • DEKRA Certification B.V., CCA, NTR NL 7840, EN 60998
  • Underwriters Laboratories Inc., AEx, E185892, UL 60079
  • CQST/CNEx, CCCEx, 2020312313000289, CNCA-C23-01
  • CSA, CSA, 80034182, C22.2 No. 158
  • Physikalisch Technische Bundesanstalt, ATEX, PTB 19 ATEX 1019 UII 2G Ex eb IIC Gb or I M 2 Ex eb I Mb, EN IEC 60079-0
  • Underwriters Laboratories Inc., cURus, E45172, UL 1059

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-2

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Push-button || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 1 mm²
  • Solid conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
  • Solid conductor; push-in termination: 0.5 … 1.5 mm² / 20 … 16 AWG
  • Fine-stranded conductor: 0.14 … 1.5 mm² / 24 … 16 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.14 … 0.75 mm² / 24 … 18 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 0.5 … 0.75 mm² / 20 … 18 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 9 … 11 mm / 0.35 … 0.43 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 3.5 mm / 0.138 inch
  • Height: 34.1 mm / 1.343 inch
  • Depth from upper edge of DIN-rail: 27.9 mm / 1.098 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-15 rail
  • Marking level: Center/side marking

Material Data

  • Color: Green-yellow
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.000 MJ
  • Weight: 3.820 g

Commercial Data

  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143981729
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
