WAGO 2854-099/000-001

Part #

2854-099/000-001

Manufacturer

Wago

Condition

New

Price: $ 12720.31

Please Contact Us for Stock Availability

Qty

Order by 3PM MST (subject to stock availability) same day shipping available!

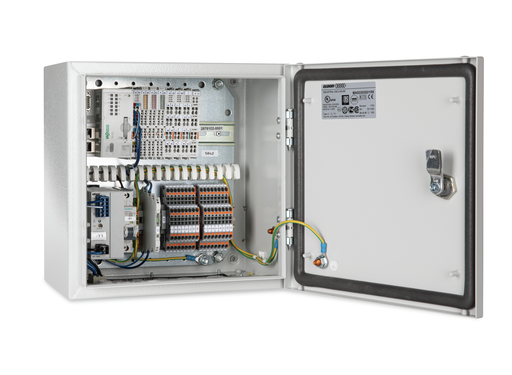

IoT-Box Energy Data

Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.

IoT-Box Energy Data

Features

Controller PFC200; 2nd generation; 2 x ETHERNET, RS-232/-485: 750-8212
Switched-Mode Power Supply; Classic; 1-phase; Output voltage: 24 VDC; Output current: 2 A; NEC Class 2; DC OK signal: 787-1606
8-Channel Digital Input; 24 VDC; 3 ms; 2-wire connection: 750-1415
8-Channel Digital Output; 24 VDC; 0.5 A; 2-wire connection: 750-1515
8-Channel Analog Input; Resistance measurement; Adjustable: 750-451
4-Channel Analog Input; Voltage/current; Differential input; 16 bits; Diagnostics: 750-471
3-Phase Power Measurement; 690 VAC 1 A: 750-495/000-002
Rogowski Coil; Primary rated current: 4000 A; Output signal: 22.5 mV per kA; Cable length: 1.5 m; Feedthrough for measurement conductor: 70 mm: 855-9150/2000-701
End Module: 750-600
SD Memory Card; pSLC-NAND; 8 GB; Temperature range: −40 … +90 °C: 758-879/000-2108
IoT Box application (installed and licensed)
Circuit breaker; 1-pole; C 10 A; 10 kA
Electrical circuit breaker; 1-pole; 24 VDC; 1 … 8 A
Set of wall-mount lugs
Cable grips M16; M20; M25
Connectors (plug and socket) for power supply

Communication: ETHERNET || RS-232 serial interface || RS-485 serial interface || MQTT
ETHERNET protocols: DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
Visualization: Web Visu
Baud rate (communication/fieldbus 1): 10/100 Mbit/s
Baud rate: ETHERNET: 10/100 Mbit/s
Supply voltage: 230 VAC; (L/N/GND); 50 Hz

Surrounding air temperature (operation): 0 … 45 °C
Surrounding air temperature (storage): -40 … 85 °C
Protection type: IP20
Note on protection type: IP20/IP65; (IP65 only applies when both power and LAN cables are locked)
Pollution degree (5): I
Relative humidity (without condensation): 95 %
Mounting type: Wall mount
Fire load: 0.000 MJ
