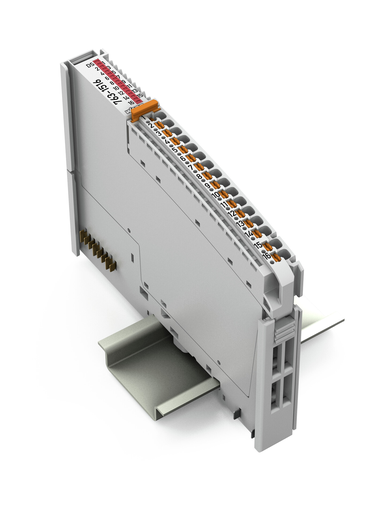

Features

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201
• Underwriters Laboratories Inc., UL, E198726, UL 121201

Specifications

Technical Data

• Device-specific: Synchronization mode: time-synchronized, freewheeling
• Number of digital outputs: 8
• Total number of channels (module): 8
• Signal type: Voltage
• Voltage signal type: 24 VDC
• Actuator connection: 16 x (1-wire)
• Output characteristic: Semiconductor, high-side switching
• Output current per channel: 0.5 A
• Output current (module): 8 A
• Protection against incorrect wiring: Short-circuit-protected || Self-resetting
• Switching frequency (max.): 1 kHz; Resistive load
• Switching frequency (max.) (2): 3 Hz; Inductive load
• Switching frequency (max.) (3): 500 Hz; Lamp load
• Load type: Resistive: 48 Ω … 16 kΩ, at 24 V; Inductive: DC13; Lamp load: up to 5 W
• Output voltage: 24 VDC
• Load type of switching frequency: Resistive load
• Data width: 16-bit channel status
• Supply voltage (field): 24 VDC, SELV (-25 … +30 %); UF
• Power consumption, field supply (module with no external load): 26 mA
• Power loss Pl: 1.6 W
• Isolation (field/system): Min. 1000 VDC (1 min); per EN/UL 61010-2-201
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 12 A
• Marking: Cl I, Div 2, Group A, B, C, D, T4

Connection Data

• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Note (conductor cross-section): Insulated ferrule: 0.75 mm² (max.)

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 105 mm / 4.134 inch
• Depth: 75 mm / 2.953 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.047 MJ
• Weight: 73.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C (Horizontal, typical control cabinet installation; −25 … +50 °C, other mounting positions)
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 25 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 85 °C
• Protection type: IP20
• Pollution degree (5): 2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 3000 m (0.5 K/100 m)
• Mounting position: Horizontal, typical for control cabinets (nominal mounting position); horizontal (floor mounting position); standing (vertical at bottom)
• Relative humidity (without condensation): 95 %
• EMC immunity to interference: Per EN 61000-6-1, -2
• EMC emission of interference: Per EN 61000-6-3, -4

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143975544
• Customs tariff number Sales Organisation Germany: 85371098990
