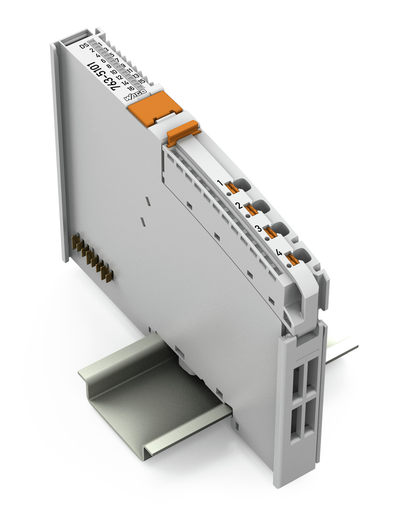

Features

Approvals

• Underwriters Laboratories Inc., UL, E198726, UL 121201
• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

• Fuse: 5 x 20; T 6.3 A (not included); PV (max.) = 1.6 W; Observe the fuse derating!
• Data width: 2 bits; Bit 0: Power supply status (field) in front of the fuse; Bit 1: Power supply status (field) behind the fuse (at the power jumper contacts)
• Supply voltage (field): 24 VDC, SELV (-25 … +30 %); UF
• Power consumption, field supply (module with no external load): 6 mA
• Power loss Pl: 1.0 W
• Isolation (field/system): Min. 1000 VDC (1 min); per EN/UL 61010-2-201
• Number of outgoing power jumper contacts: 2
• Current carrying capacity (power jumper contacts): 12 A
• Marking: Cl I, Div 2, Group A, B, C, D, T4

Connection Data

• Connection technology: field supply: 4 x Push-in CAGE CLAMP®
• Connection type (1): Field supply
• Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Note (conductor cross-section): Insulated ferrule: 1.5 mm² (max.)

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 105 mm / 4.134 inch
• Depth: 75 mm / 2.953 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 0.082 MJ
• Weight: 63.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -25 … 60 °C (Horizontal, typical control cabinet installation; −25 … +50 °C, other mounting positions)
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 25 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 85 °C
• Protection type: IP20
• Pollution degree (5): 2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 3000 m (0.5 K/100 m)
• Mounting position: Horizontal, typical for control cabinets (nominal mounting position); horizontal (floor mounting position); standing (vertical at bottom)
• EMC immunity to interference: Per EN 61000-6-1, -2
• EMC emission of interference: Per EN 61000-6-3, -4

Commercial Data

• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143975742
• Customs tariff number Sales Organisation Germany: 85389091890
