WAGO
»
Electronics
»
Series 763
»
WAGO 763-5120
WAGO 763-5120
763-5120 WAGO 763-5120
OutOfStock
Out Of Stock
Part #
763-5120
Manufacturer
Wago
Condition
New
Quantity
Price
*Note:
Price:
$
176.99
Please Contact Us for Stock Availability
Qty
1
Add to cart
Order by 3PM MST (subject to stock availability) same day shipping available!

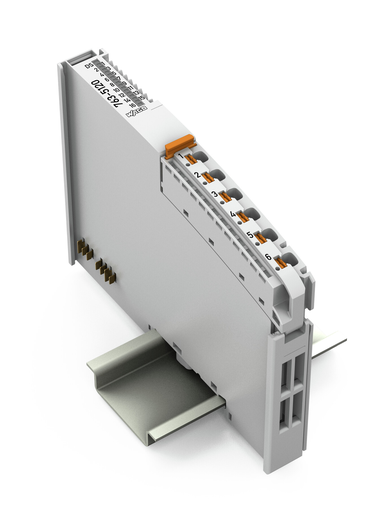

System Power Supply; 24 VDC
Got questions?
Send us a message
or call us at
1-800-335-5111
for additional assistance.
Detailed Information
Send to friend
System Power Supply; 24 VDC
Features
Approvals
Underwriters Laboratories Inc., UL, E198726, UL 121201
Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201
Specifications
Technical Data
Data width: 1 bit; Bit 0: Power supply status (field)
Supply voltage (system): 24 VDC, SELV (-25 … +30 %); US
Power consumption – system supply (power supply) at max. local bus supply: 900 mA
Total current for system supply (local bus) max.: 3900 mA
Supply voltage (field): 24 VDC, SELV (-25 … +30 %); UF
Power consumption, field supply (module with no external load): 3 mA
Power supply efficiency (typ.) at nominal load (24 V): 95 %
Power loss Pl: 1.5 W
Isolation (field/system): Min. 1000 VDC (1 min); per EN/UL 61010-2-201
Current carrying capacity (power jumper contacts): 12 A
Current carrying capacity (power jumper contacts) note: Requires external fusing (12.5 A fast) of the field supply
Marking: Cl I, Div 2, Group A, B, C, D, T4
Connection Data
Connection technology: field supply: 4 x Push-in CAGE CLAMP®
Connection technology: system supply: 2 x Push-in CAGE CLAMP®
Connection type (1): System supply
Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inch
Connection type 2: Field supply
Note (conductor cross-section): Insulated ferrule: 1.5 mm² (max.)
Physical Data
Width: 12 mm / 0.472 inch
Height: 105 mm / 4.134 inch
Depth: 75 mm / 2.953 inch
Mechanical Data
Mounting type: DIN-35 rail
Material Data
Fire load: 0.047 MJ
Weight: 68.000 g
Conformity marking: CE
Environmental Requirements
Surrounding air temperature (operation): -25 … 60 °C (Horizontal, typical control cabinet installation; −25 … +50 °C, other mounting positions)
Surrounding air temperature (storage): -40 … 85 °C
Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 25 K)
Temperature range of connecting cable per UL 61010-2-201 (min.): 85 °C
Protection type: IP20
Pollution degree (5): 2
Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 3000 m (0.5 K/100 m)
Mounting position: Horizontal, typical for control cabinets (nominal mounting position); horizontal (floor mounting position); standing (vertical at bottom)
EMC immunity to interference: Per EN 61000-6-1, -2
EMC emission of interference: Per EN 61000-6-3, -4
Commercial Data
Country of origin Sales Organisation Germany: DE
GTIN: 4055143975667
Customs tariff number Sales Organisation Germany: 85389091890
