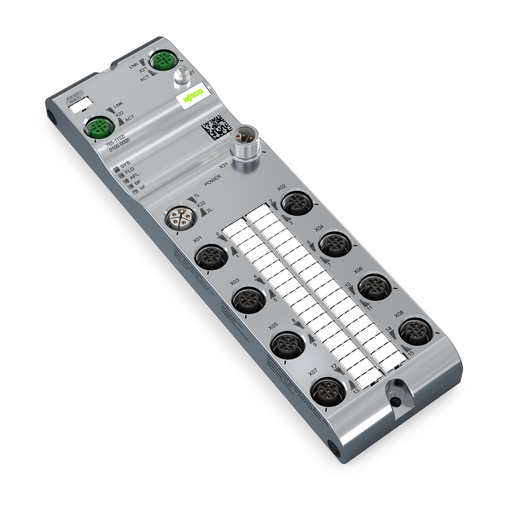

Specifications

Fieldbus

• Communication: PROFINET || PROFINET IO Device; 2-port switch, LLDP, MRP, SNMP
• Connection technology: communication/fieldbus: 2 x D-coded M12; 4-pole
• Interface standard: 10BASE-T/100BASE-TX; potential-free
• Autonegotiation; autocrossover: Yes
• PROFINET IO properties: PROFINET IO device; 2-port switch, LLDP, MRP, SNMP

Device Functions

• Parameters: Input filter || Output current || Temperature
• Diagnostics: Undervoltage; overcurrent; overload; overtemperature
• Device functions: Bluetooth® || OPC UA Server
• Visualization: Android/iOS app || Webserver

Digital Inputs/Outputs

• Number of digital inputs: 16
• Number of digital outputs: 16
• Connection technology: inputs/outputs: 8 x A-coded M12; 5-pole
• Voltage signal type: 24 VDC
• Input characteristic: High-side switching || Type 3, per IEC 61131-2
• Input filter: 0.2 … 20 ms
• Output current (per channel): 2 A (typ.) for DO
• Supply current per port: 1L/2L: 4 A (max.)

Module Power Supply

• Connection technology: supply: 2 x L-coded M12; 5-pole
• Supply voltage: 24 VDC (18 … 31.2 V); 1L/2L
• Power consumption (max.): 16000 mA
• Power consumption (note): Per supply line; overload- and short-circuit-protected
• Reverse voltage protection: Yes

Geometrical Data

• Width: 60 mm / 2.362 inch
• Height: 30 mm / 1.181 inch
• Depth: 210 mm / 8.268 inch

Mechanical Data

• Weight: 610.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Protection type: IP67
• Protection class: III per EN 61140, IEC 61140, VDE 0140-1
• Operating altitude: 0 … 2000 m
• Pollution degree (5): 3 per EN 60664-1
• Overvoltage category: II (EN 60664-1)
• Relative humidity (without condensation): 95 %
• Vibration resistance: 5g per IEC 60068-2-6
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143949965
• Customs tariff number Sales Organisation Germany: 85371098990
