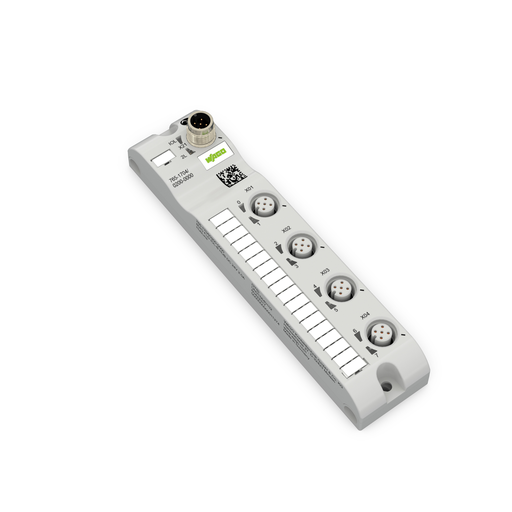

Specifications

Io-Link

• Communication: IO-Link Class B Slave
• Connection technology: communication/fieldbus: 1 x A-coded M12; 5-pole

Device Functions

• Parameters: Input filter || Output current || Temperature
• Diagnostics: Undervoltage; overcurrent; overload; overtemperature

Digital Inputs/Outputs

• Number of digital inputs: 8
• Number of digital outputs: 8
• Connection technology: inputs/outputs: 4 x A-coded M12; 5-pole
• Voltage signal type: 24 VDC
• Input characteristic: High-side switching || Type 3, per IEC 61131-2
• Input filter: 0.2 … 20 ms
• Output current (per channel): 2 A

Power Supply

• Connection technology: supply: 1 x A-coded M12; 5-pole; via IO-Link port (1L/2L)
• Supply voltage: 24 VDC (18 … 31.2 V); 1L/2L
• Power consumption (max.): 4000 mA
• Power consumption (note): 1L: 0.2 A; 2L: 0.1 A; + load current
• Reverse voltage protection: Yes

Geometrical Data

• Width: 35 mm / 1.378 inch
• Height: 30 mm / 1.181 inch
• Depth: 158.5 mm / 6.24 inch

Mechanical Data

• Weight: 110.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Protection type: IP67
• Protection class: III per EN 61140, IEC 61140, VDE 0140-1
• Operating altitude: 0 … 2000 m
• Pollution degree (5): 3 per EN 60664-1
• Overvoltage category: II (EN 60664-1)
• Vibration resistance: 5g per IEC 60068-2-6
• Shock resistance: Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143949866
• Customs tariff number Sales Organisation Germany: 85371098990
