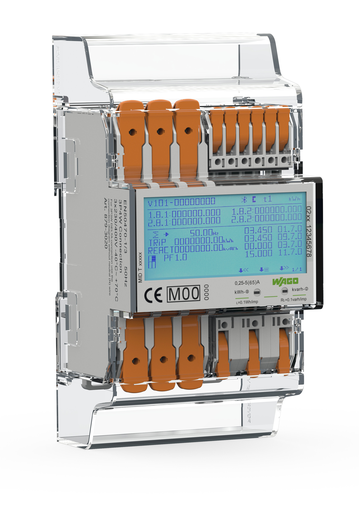

Features

• Saving time at every level thanks to the Push-in CAGE CLAMP® and lever
• Real space savings: 72 mm wide (4PS)
• Measurement of delivery and purchase
• Energy recording via 4 rates
• The communications pro: M-Bus and Modbus® interface and 2 S0 pulse outputs
• Full transparency at a glance: Display energy quality characteristics on an illuminated full-format display
• Intuitive configuration: Touch-sensitive controls and configuration app via Bluetooth®

Specifications

Configuration

• Configuration options: Touch-sensitive controls || Configuration app via Bluetooth®

Input

• Input signal type: Voltage || Current
• Network configuration: Two-wire, three-wire and four-wire networks
• Nominal input voltage Ui nom: 3 x (3) x AC 230 … 400 V
• Input voltage range: ±20 %
• Reference current Iref: 5 A
• Input current Ii: ≤ 65 A
• Frequency range: 45 … 65 Hz

Communication

• Communication: Modbus® || M-Bus || Bluetooth®
• Interface: RS-485 (2-wire); 2x S0 interfaces (configurable)
• Rate control input: AC/DC 230 V
• Indicators: LCD with backlight

Signal Processing

• Measured variables (calculated): Active and reactive energy in supply and reference direction
• Messungsart (Lastgang): No

Measurement Error

• Accuracy class: Class B (= 1 % error); Active energy per EN 50470-3
• Calibration validity period: 8 Years

Supply

• Power supply type: Via measurement circuit
• Power consumption Pmax (phase; effective power): 2 W
• Power consumption Pmax (phase; apparent power): 10 VA

Safety And Protection

• Dielectric strength: 4 kV; 1 min
• Impulse withstand voltage (1.2/50 μs): 6 kV
• Pollution degree: 2
• Protection type: IP51 (front side); IP20 (connection)
• Protection class: II

Connection Data

• Connection type (1): Voltage/current
• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: WAGO 2616 Series
• Actuation type: Lever
• Solid conductor: 0.75 … 16 mm² / 18 … 4 AWG
• Fine-stranded conductor: 0.75 … 25 mm² / 18 … 4 AWG
• Fine-stranded conductor; with insulated ferrule: 0.75 … 16 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.75 … 16 mm²
• Strip length: 18 … 20 mm / 0.71 … 0.79 inch
• Connection type 2: Communication/rate control input
• Connection technology 2: Push-in CAGE CLAMP®
• WAGO Connector 2: WAGO 2604 Series
• Actuation type 2: Lever
• Solid conductor 2: 0.2 … 4 mm² / 24 … 12 AWG
• Fine-stranded conductor 2: 0.2 … 4 mm² / 24 … 12 AWG
• Fine-stranded conductor; with insulated ferrule 2: 0.25 … 2.5 mm²
• Fine-stranded conductor; with uninsulated ferrule 2: 0.25 … 2.5 mm²
• Strip length 2: 9 … 11 mm / 0.35 … 0.43 inch

Physical Data

• Width: 72 mm / 2.835 inch
• Height: 140 mm / 5.512 inch
• Depth: 63 mm / 2.48 inch
• Note (dimensions): Height without cover: 92 mm

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Housing material: PC 940A
• Fire load: 0.000 MJ
• Weight: 280.000 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Relative humidity: ≤ 75% (during storage ≤ 95 %)

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 50470-1/3 || MID-compliant

Commercial Data

• Country of origin Sales Organisation Germany: CN
• GTIN: 4055144071399
• Customs tariff number Sales Organisation Germany: 90283019000
