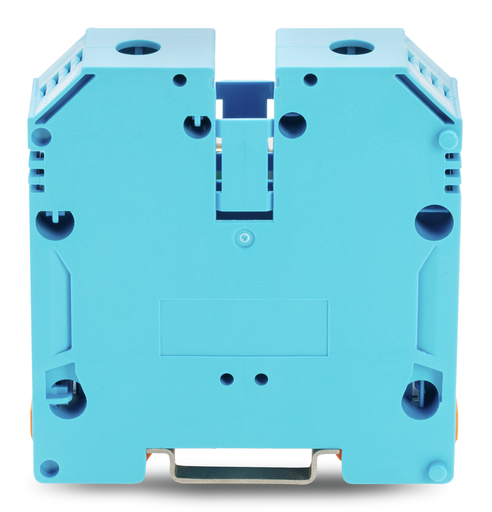

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 192 A
• Rated current 2: 232 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 205 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 205 A
• Rated voltage UL (Use Group D): 600 V
• Rated current UL (Use Group D): 205 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 205 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 205 A
• Rated voltage CSA (Use Group D): 600 V
• Rated current CSA (Use Group D): 205 A

Connection 1

• Connection technology: Screw-type connection
• Actuation type: T-wrench; 6 mm
• Connectable conductor materials: Copper
• Nominal cross-section: 70 mm²
• Solid conductor: 10 … 95 mm² / 8 … 3/0 AWG
• Stranded conductor: 10 … 95 mm² / 8 … 3/0 AWG
• Fine-stranded conductor: 10 … 70 mm² / 8 … 2/0 AWG
• Fine-stranded conductor; with insulated ferrule: 10 … 70 mm² / 8 … 2/0 AWG
• Strip length: 22 mm / 0.87 inch
• Wiring direction: Side-entry wiring
• Screw thread: M8

Physical Data

• Width: 20.5 mm / 0.807 inch
• Height: 76.5 mm / 3.012 inch
• Depth from upper edge of DIN-rail: 84 mm / 3.307 inch

Mechanical Data

• Tightening torque: 6 … 12 Nm
• Design: Horizontal type
• Mounting type: DIN-rail 35 x 7.5
• Marking level: Side marking

Material Data

• Color: Blue
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.000 MJ
• Weight: 141.000 g

Environmental Requirements

• Continuous operating temperature: -35 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143940924
• Customs tariff number Sales Organisation Germany: 85369010000
