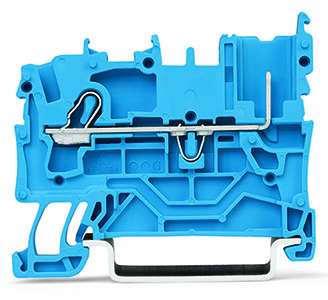

Features

Approvals

• Physikalisch Technische Bundesanstalt, ATEX, PTB 13 ATEX 1004 UII3 G Ex ec II C Gc, EN IEC 60079-0
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• DEKRA Certification B.V., CCA, NTR CCA NL-7864, EN 60947
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 13.0004U Ex ec IIC Gc, IEC 60079-0
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• DEKRA Certification B.V., CSA, 2437422, C22.2 No. 158
• CQST/CNEx, CCCEx, 2020312313000255, CNCA-C23-01
• DEKRA Certification B.V., KEMA/KEUR, 71-116567, EN 60947

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Rated current: 20 A

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 20 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 20 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 20 A

Ex Information

• Rated voltage EN (Ex e II): 630 V

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Number of connection points: 1
• Actuation type: Operating tool || Push-in
• Connectable conductor materials: Copper
• Nominal cross-section: 2.5 mm²
• Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 10 … 12 mm / 0.39 … 0.47 inch
• Wiring direction: Front-entry wiring

Connection 2

• Number of connection points 2: 1

Physical Data

• Width: 5.2 mm / 0.205 inch
• Height: 48.5 mm / 1.909 inch
• Depth from upper edge of DIN-rail: 32.5 mm / 1.28 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Blue
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.112 MJ
• Weight: 5.050 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: CN
• GTIN: 4050821644736
• Customs tariff number Sales Organisation Germany: 85366990990
