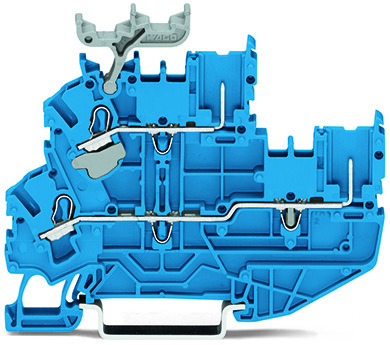

1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; N/N; without marker carrier; suitable for Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; blue
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; N/N; without marker carrier; suitable for Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; blue
Features
Approvals
- American Bureau of Shipping, ABS, 20-HG1941090-PDA, EN 60947
- DEKRA Certification B.V., CSA, 2437422, C22.2 No. 158
- Underwriters Laboratories Inc., UL, E45172, UL 1059
- Lloyds Register, LR, 91/20112 (E9), EN 60947
- Bureau Veritas S.A., BV, 38586/A0 BV, EN 60947
- Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00001V2
- DEKRA Certification B.V., KEMA/KEUR, 71-116567, EN 60947
Specifications
Ratings Per Iec/En
- Ratings per: IEC/EN 60947-7-1
- Nominal voltage (III/3): 690 V
- Rated surge voltage (III/3): 6 kV
- Rated current: 24 A
- Rated current 2: 28 A
- Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
Ratings Per Ul
- Approvals per: UL 1059
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 20 A
Ratings Per Csa
- Approvals per: C22.2 No 158
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 20 A
Connection 1
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Operating tool || Push-in
- Connectable conductor materials: Copper
- Nominal cross-section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Wiring direction: Front-entry wiring
Physical Data
- Width: 5.2 mm / 0.205 inch
- Height: 80.1 mm / 3.154 inch
- Depth from upper edge of DIN-rail: 51.3 mm / 2.02 inch
Mechanical Data
- Potentialkennzeichnung: N/N
- Design: Horizontal type
- Mounting type: DIN-35 rail
- Marking level: Side marking
Material Data
- Color: Blue
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.244 MJ
- Weight: 11.490 g
Commercial Data
- Packaging type: Box
- Country of origin Sales Organisation Germany: CN
- GTIN: 4055143265775
- Customs tariff number Sales Organisation Germany: 85366990990
