WAGO 2042-7204

2042-7204 WAGO 2042-7204

WAGO 2042-7204
Part # 2042-7204
Manufacturer Wago
GTIN 4055143751353
Condition New
Price: $ 38.64

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

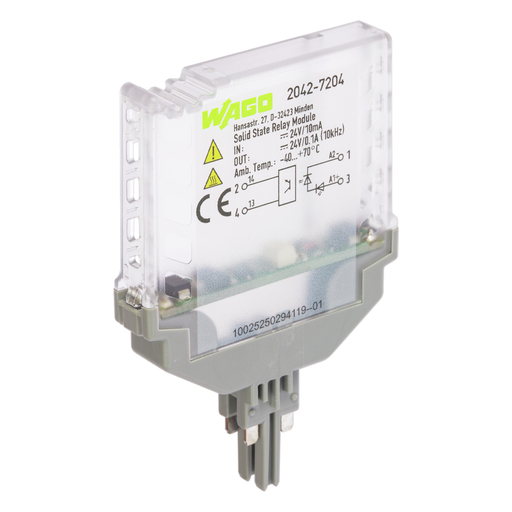

SSR DC 24V
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
SSR DC 24V

Features

Approvals

  • Underwriters Laboratories Inc., UL, E175199, UL 61010-1

Specifications

Notes

  • Note: Optocouplers and solid state relays are designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks.

Control Circuit

  • Nominal input voltage UN: DC 24 V (SELV)
  • Input voltage range (low level): DC 0 … 10 V
  • Input voltage range (high level): DC 16.8 … 30 V
  • Nominal input current at UN: 7 mA
  • Input current range: 6 … 8 mA
  • Nennfrequenzbereich: (5030514)

Load Circuit

  • Circuit type: 2-wire connection
  • Limiting continuous current: 0.1 A
  • Nominal output voltage: DC 24 V (SELV)
  • Output voltage range: DC 3 … 60 V
  • Voltage drop at output (max.): ≤ DC 1 V
  • Switching current (min.): 20 µA
  • Turn-on time: ≤ 8 µs
  • Turn-off time: ≤ 14 µs
  • Switching frequency: ≤ 10 kHz
  • Nennfrequenzbereich: (5030623)

Signaling

  • Status indicator: Green LED

Safety And Protection

  • Overvoltage category: II
  • Pollution degree: 2
  • Dielectric strength, control/load circuit (AC, 1 min): 2.5 kVrms
  • Protection type: IP20

Physical Data

  • Width: 10.3 mm / 0.406 inch
  • Height: 77.7 mm / 3.059 inch
  • Height from the surface: 59.3 mm / 2.335 inch
  • Depth: 52 mm / 2.047 inch

Mechanical Data

  • Mounting type: Pluggable module for TOPJOB® S Carrier Terminal Block

Material Data

  • Flammability class per UL94: V0
  • Fire load: 0.107 MJ
  • Weight: 13.446 g

Environmental Requirements

  • Surrounding air temperature (operation at UN): -40 … 70 °C
  • Surrounding air temperature (storage): -40 … 85 °C
  • Processing temperature: -25 … +50 °C
  • Operating altitude (max.): 2000 m

Standards And Specifications

  • Standards/Specifications: EN 61010-2-201 || EN 61373 || EN 50121-3-2 || EN 50121-4 || EN 61000-6-2 || EN 61000-6-3

Commercial Data

  • Packaging type: Bag
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143751353
  • Customs tariff number Sales Organisation Germany: 85365005000
: *
: *
: *
