Features

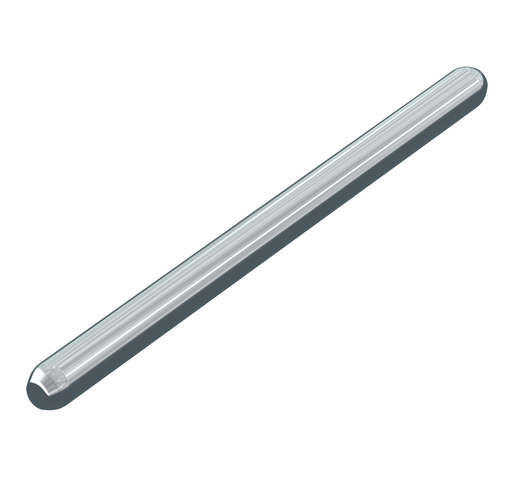

• Board-to-board links simplify in-line assembly of LED modules
• Space saving connection of PCBs

Specifications

Notes

• Safety information 1: NOTE: Terminal block without insulation housing! Protection against accidental contact must be provided at voltages higher than low voltages (e.g., SELV/PELV) for the relevant application.
• Note: The layout must meet the requirements of the insulation coordination standard EN/IEC 60664-1 and applicable end product standards.

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 9 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Physical Data

• Depth: 15.6 mm / 0.614 inch
• Length: 15.6 mm
• Diameter: 1 mm

Mechanical Data

• Mating cycles (max.): 10
• Number of mating cycles: Max. 10 connections/disconnections
• Suitable: For SMD PCB terminal blocks (2065 Series)

Material Data

• Color: Silver-colored
• Contact material: Copper alloy
• Contact plating: Silver-plated
• Fire load: 0.000 MJ
• Weight: 0.110 g

Environmental Requirements

• Limit temperature range: -60 … +120 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143862721
• Customs tariff number Sales Organisation Germany: 85369010000
