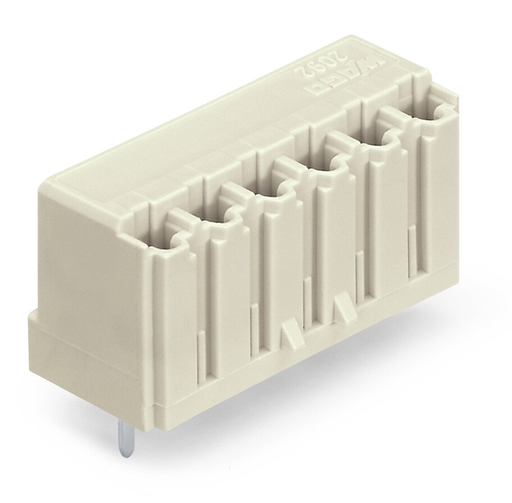

Features

• Assembly of female connectors without loss of poles, allowing different functions to be divided within one male header
• Coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
• The female connector is fully shrouded by the male header's housing, providing vibration resistance up to 20 g

Approvals

• DEKRA Certification B.V., CSA, 2362521, C22.2
• Underwriters Laboratories Inc., cURus, E45172, UL 1059
• Underwriters Laboratories Inc., UL, E45171, UL 1977
• DEKRA Certification B.V., KEMA/KEUR, 71-102261 REV.2, EN 61984

Specifications

Notes

• Safety information 1: The picoMAX® Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Tape-and-reel packaging || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 250 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 16 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A

Connection 1

• Pole No.: 5

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 25 mm / 0.984 inch
• Height: 18.6 mm / 0.732 inch
• Height from the surface: 16.2 mm / 0.638 inch
• Depth: 13.6 mm / 0.535 inch
• Solder pin length: 2.4 mm
• Solder pin dimensions: 0.4 x 1.3 mm
• Plated through-hole diameter (THR): 1.5 (+0.1) mm

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For PCB
• Mismating protection: No
• Mating direction to the PCB: 90 °
• Locking of plug-in connection: Without

Pcb Contact

• PCB Contact: THR

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polyphthalamide (PPA GF)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.115 MJ
• Weight: 4.640 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4050821395485
• Customs tariff number Sales Organisation Germany: 85366990990
