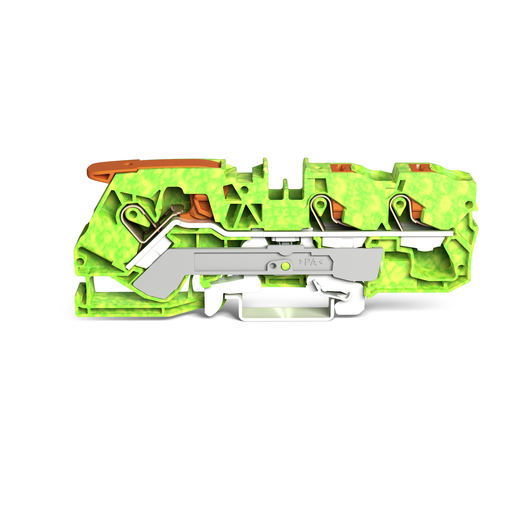

Features

Approvals

• Underwriters Laboratories Inc., cURus, E185892, UL 60079
• CQST/CNEx, CCCEx, 2020312313000165, CNCA-C23-01
• DEKRA Certification B.V., CCA, NTR NL-7757, EN 60947
• Physikalisch Technische Bundesanstalt, ATEX, PTB 19 ATEX 1017 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079-0
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 19.0047U Ex eb IIC Gb or Ex eb I Mb, IEC 60079
• DEKRA Certification B.V., KEMA/KEUR, 71-109053, EN 60947

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-2

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Lever
• Connectable conductor materials: Copper
• Nominal cross-section: 10 mm²
• Solid conductor: 0.5 … 16 mm² / 20 … 6 AWG
• Solid conductor; push-in termination: 4 … 16 mm² / 14 … 6 AWG
• Fine-stranded conductor: 0.5 … 16 mm² / 20 … 6 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 4 … 10 mm² / 12 … 8 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 17 … 19 mm / 0.67 … 0.75 inch
• Wiring direction: Front-entry wiring

Connection 2

• Actuation type 2: Push-in || Push-button || Operating tool

Physical Data

• Width: 10 mm / 0.394 inch
• Height: 110.4 mm / 4.346 inch
• Depth from upper edge of DIN-rail: 36.9 mm / 1.453 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Green-yellow
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.029 MJ
• Weight: 44.059 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4055143904452
• Customs tariff number Sales Organisation Germany: 85369010000
