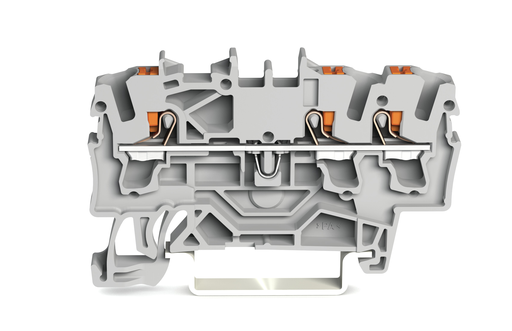

Features

Approvals

• Underwriters Laboratories Inc., AEx, E185892, UL 60079
• American Bureau of Shipping, ABS, 19-HG1866350-PDA
• Underwriters Laboratories Inc., cURus, E45172, UL 1059
• DEKRA Certification B.V., CSA, 701737745, C22.2
• Lloyds Register, LR, 19/20050
• CQST/CNEx, CCCEx, 2020312313000169, CNCA-C23-01
• DEKRA Certification B.V., KEMA/KEUR, 71-114275, EN 60947
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 18.0012U Ex eb IIC Gb and Ex eb I Mb, IEC 60079
• Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
• DEKRA Certification B.V., CCA, NTR NL 7841, EN 60947
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00003JT
• Physikalisch Technische Bundesanstalt, ATEX, PTB 18 ATEX 1005 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, IEC 60079-0

Specifications

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 24 A
• Rated current 2: 32 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 20 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 20 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 20 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 20 A

Ex Information

• Ratings per: ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb)
• Rated voltage EN (Ex e II): 550 V
• Rated current (Ex e II): 22 A
• Rated current (Ex e II) with jumper: 20 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Push-button || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 2.5 mm²
• Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
• Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 10 … 12 mm / 0.39 … 0.47 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 5.2 mm / 0.205 inch
• Height: 59.2 mm / 2.33 inch
• Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.131 MJ
• Weight: 6.340 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143713795
• Customs tariff number Sales Organisation Germany: 85369010000
