WAGO 2202-2701

2202-2701 WAGO 2202-2701

WAGO 2202-2701
Part # 2202-2701
Manufacturer Wago
GTIN 4055143844598
Condition New
Price: $ 3.75

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!

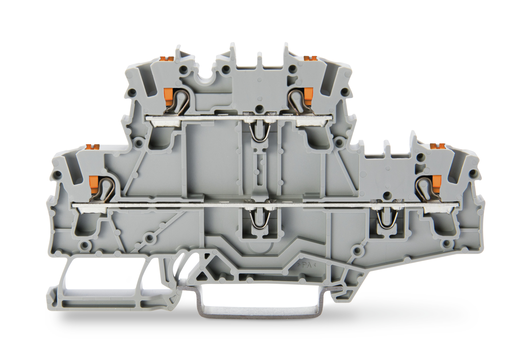

Double-deck terminal block; with push-button; Through/through terminal block; L/L; without marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
Double-deck terminal block; with push-button; Through/through terminal block; L/L; without marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray

Features

Approvals

  • DEKRA Certification B.V., CSA, 701737745, C22.2
  • Underwriters Laboratories Inc., AEx, E185892, UL 60079
  • DEKRA Certification B.V., CCA, NTR NL 7841, EN 60947
  • Underwriters Laboratories Inc., UL, E45172, UL 1059
  • DEKRA Certification B.V., KEMA/KEUR, 71-114275, EN 60947

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-1
  • Nominal voltage (III/3): 800 V
  • Rated surge voltage (III/3): 8 kV
  • Rated current: 24 A
  • Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

  • Approvals per: UL 1059
  • Rated voltage UL (Use Group B): 600 V
  • Rated current UL (Use Group B): 20 A
  • Rated voltage UL (Use Group C): 600 V
  • Rated current UL (Use Group C): 20 A

Ratings Per Csa

  • Approvals per: C22.2 No 158
  • Rated voltage CSA (Use Group B): 600 V
  • Rated current CSA (Use Group B): 24 A
  • Rated voltage CSA (Use Group C): 600 V
  • Rated current CSA (Use Group C): 24 A

Ex Information

  • Ratings per: ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb)
  • Rated voltage EN (Ex e II): 550 V
  • Rated current (Ex e II): 17.5 A
  • Rated current (Ex e II) with jumper: 17 A

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Number of connection points: 2
  • Actuation type: Push-in || Push-button || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 2.5 mm²
  • Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
  • Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 10 … 12 mm / 0.39 … 0.47 inch
  • Wiring direction: Front-entry wiring

Connection 2

  • Number of connection points 2: 2

Physical Data

  • Width: 5.2 mm / 0.205 inch
  • Height: 92.5 mm / 3.642 inch
  • Depth from upper edge of DIN-rail: 51.7 mm / 2.035 inch

Mechanical Data

  • Potentialkennzeichnung: L/L
  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Gray
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.000 MJ
  • Weight: 12.525 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143844598
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
