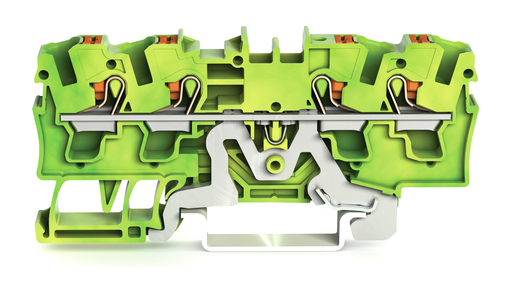

WAGO 2204-1407
2204-1407 WAGO 2204-1407
InStock
4-conductor ground terminal block; with push-button; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; green-yellow
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
4-conductor ground terminal block; with push-button; 4 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; green-yellow
Features
Approvals
- Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
- DEKRA Certification B.V., CSA, 70175102, C22.2
- Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00003JT
- CQST/CNEx, CCCEx, 2020312313000170, CNCA-C23-01
- Underwriters Laboratories Inc., AEx, E185892, UL 60079
- American Bureau of Shipping, ABS, 19-HG1866350-PDA
- Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 18.00 13U Ex eb IIC Gb and Ex eb I Mb, IEC 60079
- Lloyds Register, LR, 19/20050
- DEKRA Certification B.V., KEMA/KEUR, 71-102877, EN 60947
- Physikalisch Technische Bundesanstalt, ATEX, PTB 18 ATEX 1006 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, IEC 60079-0
- DEKRA Certification B.V., CCA, NTR NL 7666, EN 60947
- Underwriters Laboratories Inc., cURus, E45172, UL 1059
Specifications
Ratings Per Iec/En
- Ratings per: IEC/EN 60947-7-2
Connection 1
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in || Push-button || Operating tool
- Connectable conductor materials: Copper
- Nominal cross-section: 4 mm²
- Solid conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Solid conductor; push-in termination: 1 … 6 mm² / 14 … 10 AWG
- Fine-stranded conductor: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-stranded conductor; with insulated ferrule: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1.5 … 4 mm² / 18 … 12 AWG
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Strip length: 11 … 13 mm / 0.43 … 0.51 inch
- Wiring direction: Front-entry wiring
Physical Data
- Width: 6.2 mm / 0.244 inch
- Height: 78.7 mm / 3.098 inch
- Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch
Mechanical Data
- Design: Horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: Green-yellow
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.000 MJ
- Weight: 16.084 g
Commercial Data
- Packaging type: Box
- Country of origin Sales Organisation Germany: DE
- GTIN: 4055143711333
- Customs tariff number Sales Organisation Germany: 85369010000
