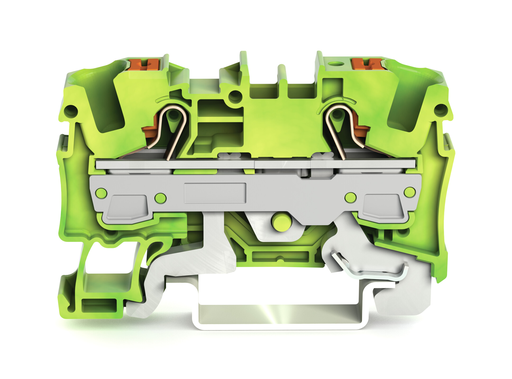

WAGO 2206-1207

2206-1207 WAGO 2206-1207

WAGO 2206-1207
Part # 2206-1207
Manufacturer Wago
GTIN 4055143712064
Condition New
Price: $ 6.66
Qty
50 In stock
Order by 3PM MST (subject to stock availability) same day shipping available!
2-conductor ground terminal block; with push-button; 6 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; green-yellow
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
2-conductor ground terminal block; with push-button; 6 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; green-yellow

Features

Approvals

  • Brjansker Zertifizierungsstelle, EAC, RU C-DE.AM02.B.00127/19, TP TC 012/2011
  • Underwriters Laboratories Inc., AEx, E185892, UL 60079
  • DEKRA Certification B.V., CCA, NTR NL 7880, EN 60947
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE00003JT
  • DEKRA Certification B.V., CSA, 70175034, C22.2
  • Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 18.0014U Ex eb IIC Gb and Ex eb I Mb, IEC 60079
  • Lloyds Register, LR, 19/20050
  • American Bureau of Shipping, ABS, 19-HG1866350-PDA
  • Underwriters Laboratories Inc., UL, 478863229, C22.2 No. 158
  • DEKRA Certification B.V., KEMA/KEUR, 71-119270, EN 60947
  • Physikalisch Technische Bundesanstalt, ATEX, PTB 18 ATEX 1007 UII 2 Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, IEC 60079-0

Specifications

Ratings Per Iec/En

  • Ratings per: IEC/EN 60947-7-2

Ex Information

  • Ratings per: ATEX: PTB 18 ATEX 1007 U / IECEx: PTB 18.0014U

Connection 1

  • Connection technology: Push-in CAGE CLAMP®
  • Actuation type: Push-in || Push-button || Operating tool
  • Connectable conductor materials: Copper
  • Nominal cross-section: 6 mm²
  • Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Solid conductor; push-in termination: 1 … 10 mm² / 14 … 8 AWG
  • Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
  • Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm² / 20 … 10 AWG
  • Fine-stranded conductor; with ferrule; push-in termination: 2.5 … 6 mm² / 16 … 10 AWG
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
  • Strip length: 13 … 15 mm / 0.51 … 0.59 inch
  • Wiring direction: Front-entry wiring

Physical Data

  • Width: 7.5 mm / 0.295 inch
  • Height: 57.3 mm / 2.256 inch
  • Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

  • Design: Horizontal type
  • Mounting type: DIN-35 rail
  • Marking level: Center/side marking

Material Data

  • Color: Green-yellow
  • Insulation material: Polyamide (PA66)
  • Flammability class per UL94: V0
  • Fire load: 0.165 MJ
  • Weight: 17.958 g

Commercial Data

  • Packaging type: Box
  • Country of origin Sales Organisation Germany: DE
  • GTIN: 4055143712064
  • Customs tariff number Sales Organisation Germany: 85369010000
: *
: *
: *
