Features

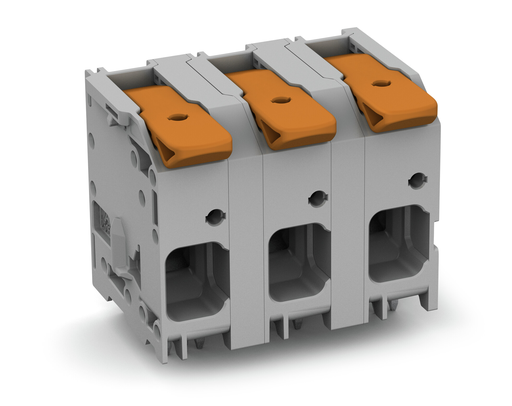

• PCB terminal blocks with levers and Push-in CAGE CLAMP® connection
• Push-in termination of solid and ferruled conductors
• Intuitive and tool-free operation
• Several clamping units can be held open simultaneously – convenient for terminating multi-core cables
• Testing can be performed both parallel and perpendicular to conductor entry

Approvals

• Underwriters Laboratories Inc., cURus, E45172, C22.2 No. 158
• DEKRA Certification B.V., CB, NL-61617, IEC 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-110774, EN 60947-7-4
• DEKRA Certification B.V., CSA, 70154737, C22.2

Specifications

Notes

• Variants:: Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated voltage (III/2): 1000 V
• Rated surge voltage (III/2): 8 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 8 kV
• Rated current: 76 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 78 A
• Rated voltage UL (Use Group C): 300 V
• Rated current UL (Use Group C): 78 A
• Rated voltage UL (Use Group D): 600 V
• Rated current UL (Use Group D): 5 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 72 A
• Rated voltage CSA (Use Group C): 300 V
• Rated current CSA (Use Group C): 72 A
• Rated voltage CSA (Use Group D): 600 V
• Rated current CSA (Use Group D): 72 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Lever
• Solid conductor: 0.75 … 16 mm² / 18 … 4 AWG
• Fine-stranded conductor: 0.75 … 25 mm² / 18 … 4 AWG
• Fine-stranded conductor; with insulated ferrule: 0.75 … 16 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.75 … 16 mm²
• Fine-stranded conductor; with twin ferrule: 0.75 … 6 mm²
• Strip length: 18 … 20 mm / 0.71 … 0.79 inch
• Conductor connection direction to PCB: 0 °
• Pole No.: 3

Physical Data

• Pin spacing: 15 mm / 0.591 inch
• Width: 41.5 mm / 1.634 inch
• Height: 37.2 mm / 1.465 inch
• Height from the surface: 33.2 mm / 1.307 inch
• Depth: 32 mm / 1.26 inch
• Solder pin length: 4 mm
• Solder pin dimensions: 1.2 x 1.2 mm
• Drilled hole diameter with tolerance: 1.7 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 6

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.106 MJ
• Color of actuator: Orange
• Weight: 33.905 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4055143860291
• Customs tariff number Sales Organisation Germany: 85369010000
