Features

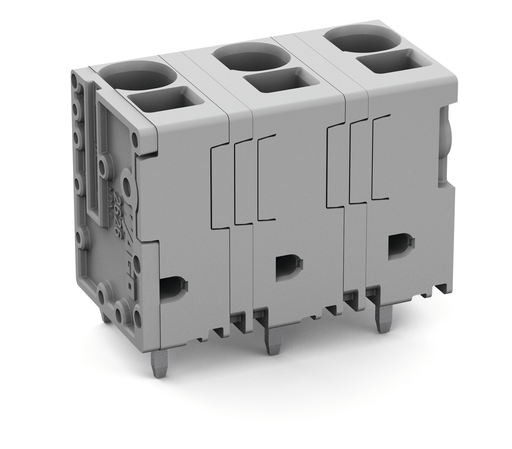

• PCB terminal strips with Push-in CAGE CLAMP® connection
• Push-in termination of solid and ferruled conductors
• Ideal for panel feedthrough applications via operation parallel to conductor entry
• Testing can be performed both parallel and perpendicular to conductor entry

Approvals

• DEKRA Certification B.V., CB, NL-64739, IEC 60947-7-4
• DEKRA Certification B.V., KEMA/KEUR, 71-113203, EN 60947-7-4
• DEKRA Certification B.V., CSA, 70146882, C22.2

Specifications

Notes

• Variants:: Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated voltage (III/2): 1000 V
• Rated surge voltage (III/2): 8 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 8 kV
• Rated current: 48 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 38 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 38 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 38 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 38 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 6 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 6 mm²
• Fine-stranded conductor; with twin ferrule: 0.25 … 2.5 mm²
• Strip length: 13 … 15 mm / 0.51 … 0.59 inch
• Conductor connection direction to PCB: 90 °
• Pole No.: 7

Physical Data

• Pin spacing: 12.5 mm / 0.492 inch
• Width: 84.3 mm / 3.319 inch
• Height: 28.2 mm / 1.11 inch
• Height from the surface: 24.2 mm / 0.953 inch
• Depth: 18.5 mm / 0.728 inch
• Solder pin length: 4 mm
• Solder pin dimensions: 1.5 x 1 mm
• Drilled hole diameter with tolerance: 2 (+0.1) mm

Mechanical Data

• Mounting type: Feed-through mounting

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 36.878 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4055143897877
• Customs tariff number Sales Organisation Germany: 85369010000
