Features

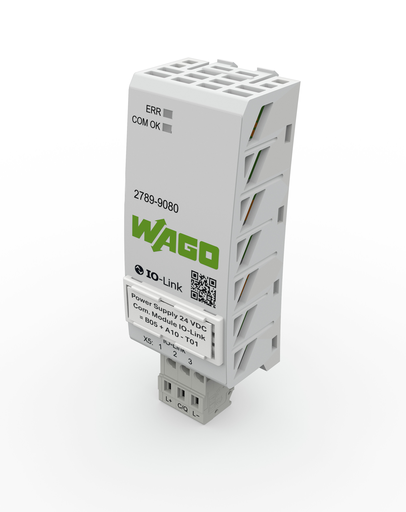

• This communication module snaps onto Pro 2 Power Supplies' communication interface.
• IO-Link device supports IO-Link specification 1.1
• Suitable for configuring and monitoring the subordinate power supply
• Function blocks for standard control systems available upon request
• Pluggable connection technology
• Marker slot for WAGO Marker Cards (WMB) and WAGO Marking Strips

Approvals

• Underwriters Laboratories Inc., UL, E198726, UL 121201
• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Input

• Nominal input voltage Ui nom: DC 24 V (SELV; via IO-Link Master)
• Input voltage range: DC 18 … 30 V(SELV; via IO-Link Master)
• Input current Ii: ≤ 0.015 A

Signaling And Communication

• Signaling: 1 x COM OK LED (green) || 1 x ERR LED (red)
• Communication: IO-Link
• IO-Link version: 1.1
• Baud rate: 230.4 kBd (COM 3)
• Data width: 5 bytes
• Data update rate: 25 ms

Safety And Protection

• Isolation: 0.63 kVDC
• Protection class: III
• Protection type: IP20 (per EN 60529)
• Pollution degree: 2

Connection Data

• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 721 Series
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Line length (max.): 20 m (IO-Link)

Physical Data

• Width: 35 mm / 1.378 inch
• Height: 95 mm / 3.74 inch
• Depth: 22 mm / 0.866 inch
• Note (dimensions): Height with connector; Depth in mounted state

Mechanical Data

• Mounting type: Snaps onto a Pro 2 Power Supply's communication interface (X4)

Material Data

• Fire load: 0.000 MJ
• Weight: 35.000 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Relative humidity: 5 … 96 % (no condensation permissible)
• Operating altitude (max.): 5000 m

Standards And Specifications

• Conformity marking: CE
• Standards/Specifications: EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 61010-1 || UL 61010-2-201 || UL HazLoc

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: VN
• GTIN: 4055143905701
• Customs tariff number Sales Organisation Germany: 85044082900
