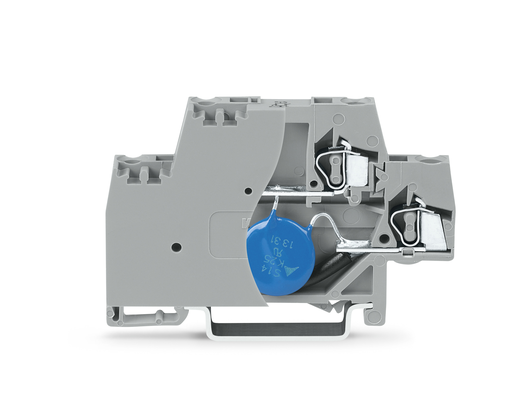

WAGO 280-504/281-584
280-504/281-584 WAGO 280-504/281-584
OutOfStock
Component terminal block; double-deck; with end plate; with varistor; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
Component terminal block; double-deck; with end plate; with varistor; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Features
- Protect your system against overvoltage
- Slim, space-saving design
- Control operational costs by preventing expensive, unplanned downtime
- High operational reliability and system uptime
Specifications
Electrical Data
- Nominal operating voltage: DC 60 V
- Continuous operating voltage (max.): DC 85 V
- Rated continuous current: 20 A
- Nominal discharge current (8/20 µs), line: 1 kA
- Discharge current (max.): 4.5 kA
- Protection level (8/20 μs): ≤ DC 165 V
- Capacitance: ≤ 1.7 nF
Connection Data
- Connection points (number): 4
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
Physical Data
- Width: 10 mm / 0.394 inch
- Height from upper-edge of DIN-rail: 39.5 mm / 1.555 inch
- Depth: 64 mm / 2.52 inch
Mechanical Data
- Design: With end plate
- Mounting type: DIN-35 rail
Material Data
- Color: Gray
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 1.338 MJ
- Weight: 15.189 g
Commercial Data
- Packaging type: Box
- Country of origin Sales Organisation Germany: DE
- GTIN: 4050821514930
- Customs tariff number Sales Organisation Germany: 85369010000
