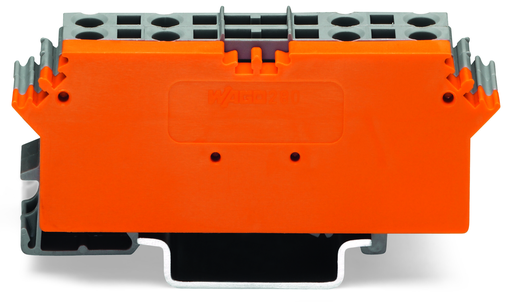

WAGO 280-762
280-762 WAGO 280-762
OutOfStock
Terminal block for pluggable modules; 4-pole; with 4-conductor terminal blocks; with marker carrier; with orange separator; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Got questions?
Send us a message
or call us at 1-800-335-5111 for additional assistance.
Terminal block for pluggable modules; 4-pole; with 4-conductor terminal blocks; with marker carrier; with orange separator; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
Specifications
Electrical Data
- Rated continuous current: 10 A
Safety And Protection
- Rated voltage: 400 V
- Rated surge voltage: 6 kV
- Pollution degree: 3
Connection Data
- Total number of potentials: 2
- Number of connection types: 4
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Wiring direction: Front-entry wiring
Physical Data
- Width: 15 mm / 0.591 inch
- Height: 73 mm / 2.874 inch
- Depth from upper edge of DIN-rail: 28 mm / 1.102 inch
Mechanical Data
- Mounting type: DIN-35 rail
Material Data
- Color: Gray
- Fire load: 0.386 MJ
- Weight: 20.000 g
Commercial Data
- Packaging type: Box
- Country of origin Sales Organisation Germany: DE
- GTIN: 4044918635653
- Customs tariff number Sales Organisation Germany: 85369010000
