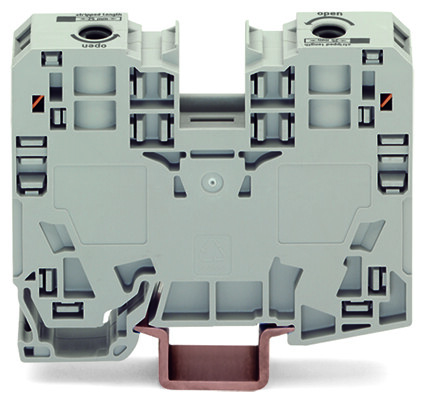

Features

Approvals

• DEKRA Certification B.V., CCA, NTR NL-7707, EN 60947
• DEKRA Certification B.V., CSA, 154112, C22.2 No. 158
• DEKRA Certification B.V., KEMA/KEUR, 71-101911, EN 60947
• Underwriters Laboratories Inc., UL, E45172, UL 1059

Specifications

Notes

• Safety information 1: Only suitable for DIN 35 x 15 rail

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 125 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 115 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 115 A

Ratings Per Csa

• Approvals per: C22.2 No 158
• Rated voltage CSA (Use Group B): 600 V
• Rated current CSA (Use Group B): 115 A
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group D): 115 A

Connection 1

• Connection technology: POWER CAGE CLAMP
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 6 … 35 mm² / 8 … 2 AWG
• Stranded conductor: 6 … 35 mm² / 8 … 2 AWG
• Fine-stranded conductor: 6 … 35 mm² / 8 … 2 AWG
• Fine-stranded conductor; with insulated ferrule: 6 … 35 mm² / 8 … 2 AWG
• Fine-stranded conductor; with uninsulated ferrule: 6 … 35 mm² / 8 … 2 AWG
• Strip length: 25 mm / 0.98 inch
• Wiring direction: Side-entry wiring

Physical Data

• Width: 16 mm / 0.63 inch
• Height: 86 mm / 3.386 inch
• Depth from upper edge of DIN-rail: 63 mm / 2.48 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Side marking

Material Data

• Color: Brown
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 1.204 MJ
• Weight: 80.071 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4055143679459
• Customs tariff number Sales Organisation Germany: 85369010000
