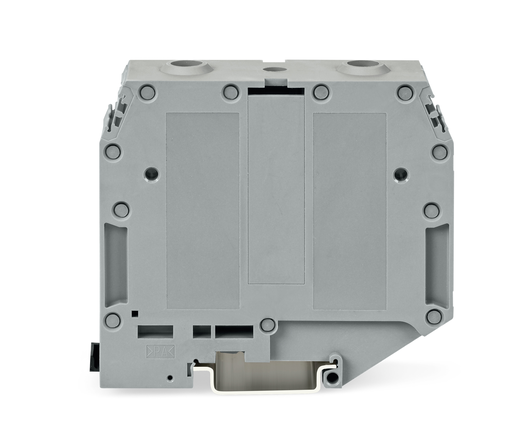

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 8 kV
• Rated current: 232 A
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: Screw-type connection
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 35 … 95 mm² / 2 … 4/0 AWG
• Strip length: 25 … 27 mm / 0.98 … 1.06 inch
• Wiring direction: Side-entry wiring

Physical Data

• Width: 26 mm / 1.024 inch
• Height: 95 mm / 3.74 inch
• Depth from upper edge of DIN-rail: 72.5 mm / 2.854 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Side marking

Material Data

• Color: Gray
• Fire load: 0.000 MJ
• Weight: 232.690 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: FR
• GTIN: 4017332186872
• Customs tariff number Sales Organisation Germany: 85369010000
