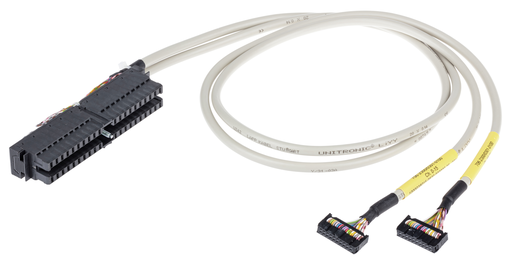

WAGO 706-2300/301-200

706-2300/301-200 WAGO 706-2300/301-200

WAGO 706-2300/301-200
Part # 706-2300/301-200
Manufacturer Wago
GTIN 4045454873899
Condition New
Price: $ 542.00

Please Contact Us for Stock Availability

Qty
Order by 3PM MST (subject to stock availability) same day shipping available!
System cable; for Siemens S7-300; 2 x 16 digital inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm²
Got questions? Send us a message or call us at 1-800-335-5111 for additional assistance.
System cable; for Siemens S7-300; 2 x 16 digital inputs or outputs; Length: 2 m; Conductor cross-section: 0.14 mm²

Specifications

Notes

  • Note: When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical Data

  • Inputs/outputs: 2 x 16 digital inputs or outputs
  • Operating voltage: ≤ AC/DC 35 V
  • Current per wire (max.): 1 A

Connection Data

  • Compatible PLC Modules: Siemens S7-300
  • Compatible PLC I/O Card Types: 6ES7 313-5BE01-0AB0 || 6ES7 313-5BG04-0AB0 || 6ES7 313-6BE01-0AB0 || 6ES7 313-6BF03-0AB0 || 6ES7 313-6CE01-0AB0 || 6ES7 313-6CF03-0AB0 || 6ES7 314-6BF01-0AB0 || 6ES7 314-6BG03-0AB0 || 6ES7 314-6CF01-0AB0 || 6ES7 314-6CG03-0AB0 || 6ES7 321-1BP00-0AA0 || 6ES7 321-1BL00-0AA0 || 6ES7 321-1BL80-0AA0 || 6ES7 322-1BL00-0AA0 || 6ES7 323-1BL00-0AA0
  • Connection type (1): System
  • Pluggable connectors: Pluggable connector per DIN 41651; Female connector
  • Connection type 2: System
  • Pole number 2: 20
  • Connector 2: Pluggable connector per DIN 41651; Female connector
  • Connection type (3): System
  • Pole number 3: 20
  • Connector 3: Siemens 6ES7-392-1BM00-0AA0
  • Cable type: LiYY
  • Wire cross-section: 0.14 mm²
  • Color code: Per DIN VDE 47100

Physical Data

  • Cable length: 2 m

Material Data

  • Fire load: 0.000 MJ
  • Weight: 405.000 g

Environmental Requirements

  • Surrounding air temperature (operation): -20 … 50 °C

Commercial Data

  • Country of origin Sales Organisation Germany: FR
  • GTIN: 4045454873899
  • Customs tariff number Sales Organisation Germany: 85444290900
: *
: *
: *
