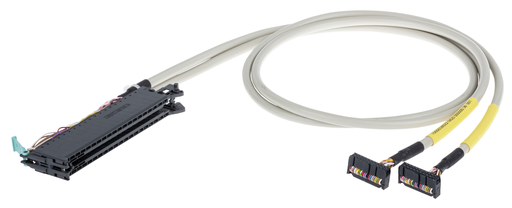

Specifications

Notes

• Note: When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A.

Electrical Data

• Inputs/outputs: 2 x 16 digital inputs or outputs
• Operating voltage: ≤ AC/DC 35 V
• Current per wire (max.): 1 A

Connection Data

• Compatible PLC Modules: Siemens S7-1500
• Compatible PLC I/O Card Types: 6ES7 521-1BL10-0AA0 || 6ES7 522-1BL10-0AA0 || 6ES7 523-1BL00-0AA0
• Connection type (1): System
• Pole number 1: 20
• Pluggable connectors: Pluggable connector per DIN 41651; Female connector
• Connection type 2: System
• Pole number 2: 20
• Connector 2: Pluggable connector per DIN 41651; Female connector
• Connection type (3): System
• Pole number 3: 40
• Connector 3: Siemens 6ES7-592-1BM00-0XB0
• Cable type: LiYY
• Wire cross-section: 0.14 mm²
• Color code: Per DIN VDE 47100

Physical Data

• Cable length: 1 m

Material Data

• Fire load: 0.000 MJ
• Weight: 26.000 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 50 °C

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: FR
• GTIN: 4055143456364
• Customs tariff number Sales Organisation Germany: 85444290900
