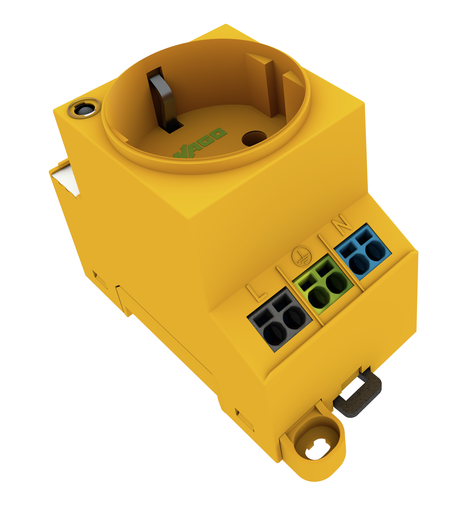

Features

Approvals

• VDE Prüf- und Zertifizierungsinstitut, VDE, 40047680 IEC 60884-1

Specifications

Notes

• Safety information 1: Installation must be performed by a qualified electrician.
• Safety information 2: During the insulation resistance test, the active conductors must be connected.The integrated status indicator in the control cabinet outlet must be protected against transient overvoltages.Overvoltage protection in low-voltage systems must be observed.

Technical Data

• Main product function: Mounting accessories
• Mounting type: DIN-35 rail
• Safety information 1: Installation must be performed by a qualified electrician.

Electrical Data

• Power loss Pl (note): LED status indicator and contact resistance
• Power loss Pl (max.): 1.8 W
• Rated current: 16 A

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Solid conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 2.5 mm² / 14 AWG
• Stranded conductor: 0.2 … 2.5 mm² / 24 … 14 AWG

Physical Data

• Width: 45 mm / 1.772 inch
• Height: 65 mm / 2.559 inch
• Height from upper-edge of DIN-rail: 59.8 mm / 2.354 inch
• Height from the surface: 65 mm / 2.559 inch
• Depth: 84.7 mm / 3.335 inch

Material Data

• Color: Signal yellow
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.000 MJ
• Contact material: Copper alloy
• Contact plating: Sn
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Weight: 81.600 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: BG
• GTIN: 4055143718325
• Customs tariff number Sales Organisation Germany: 85366990990
