Features

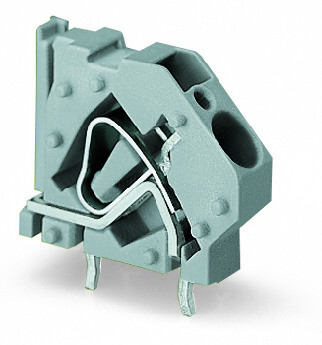

• Modular terminal blocks with screwdriver-actuated CAGE CLAMP® for custom terminal strip assemblies
• Versions with Ex approval
• Common and distribute potentials via comb-style jumper bars
• Double solder pins for high mechanical stability
• Integrated testing tap
• Marker slot for Mini-WSB markers

Approvals

• Physikalisch Technische Bundesanstalt (PTB), ATEx, PTB 06 ATEX 1014 UII 2 G Ex eb IIC Gb bzw. I M 2 Ex eb I Mb, EN 60079
• Physikalisch Technische Bundesanstalt, IECEx, IECEx PTB 06.0039 U Ex e IIC Gb or Ex e I Mb, IEC 60079

Specifications

Ex Information

• Ratings per: ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
• Rated voltage EN (Ex e II): 275 V
• Rated current (Ex e II): 37 A
• Rated current (Ex e II) with jumper: 31 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 4 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Strip length: 11 … 12 mm / 0.43 … 0.47 inch
• Conductor connection direction to PCB: 45 °
• Pole No.: 1

Physical Data

• Pin spacing: 7.5 mm / 0.295 inch
• Width: 9 mm / 0.354 inch
• Height: 27.5 mm / 1.083 inch
• Height from the surface: 23 mm / 0.906 inch
• Depth: 29.1 mm / 1.146 inch
• Solder pin length: 4.5 mm
• Solder pin dimensions: 1 x 1.4 mm
• Drilled hole diameter with tolerance: 1.5 (+0.1) mm

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)
• Number of solder pins per potential: 2

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.073 MJ
• Weight: 4.773 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4045454548797
• Customs tariff number Sales Organisation Germany: 85369010000
