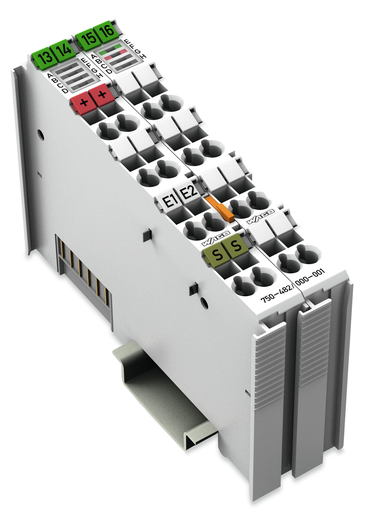

Features

Approvals

• Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079
• Underwriters Laboratories Inc., UL, E175199 Sec.1, UL 508
• CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
• TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079

Specifications

Technical Data

• Number of analog inputs: 2
• Total number of channels (module): 2
• Signal type: Current
• Signal type (current): 3.6 … 21 mADC
• Sensor connection: 2 x (2-wire)
• Input filter: Parameterizable
• Input filter: parametrizable (channel by channel): Yes
• Input voltage (max.): 24 V
• Input voltage drop: (I meas < 28 mA): non-linear, overload protected U = 1.0 V + 300 Ω x I meas
• Signal characteristic: Single-ended
• Diagnostics: Wire break, short circuit, measurement range overflow/underflow
• Resolution [bit]: 12 bits
• Data width: 2 x 2-byte data; 2 x 2-byte data + 2n x 4-byte data (n = number of dynamic variables); 2 x 2-byte data + 6-byte mailbox
• Overvoltage protection: 30 V, reverse polarity protected
• Conversion time (typ.): 315 ms
• Measurement error (reference temperature): 25 °C
• Measurement error – deviation (max.) from the upper-range value: 0.2 %
• Temperature error (max.) of the upper-range value: 0.01 %/K
• Line break detection: I meas < 1.0 mA
• Short-circuit detection: I meas > 23 mA
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 25 mA
• Supply voltage (field): 24 VDC; via power jumper contacts (power supply via blade contact; transmission via spring contact)
• HART devices per channel: One device (single-drop, no multi-drop)
• HART modems per channel: One modem (no multiplex)
• Isolation: 300 VAC system/supply
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2

Connection Data

• Connection technology: inputs/outputs: 16 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 24 mm / 0.945 inch
• Height: 100 mm / 3.937 inch
• Depth: 67.8 mm / 2.669 inch
• Depth from upper edge of DIN-rail: 60.6 mm / 2.386 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 1.689 MJ
• Weight: 94.160 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-3
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143686327
• Customs tariff number Sales Organisation Germany: 85389099990
