Red LED (overflow, underflow, measurement range overflow/underflow)
Approvals
TUEV Nord Cert GmbH, TUEV Nord, IECEx TUN 12.0039X, IEC 60079
National Radio Research Agency, KC, MSIP-REM-W43-AIM750, Article 58-2, Clause 3
CQST/CNEx, CCCEx, 2020312310000211, CNCA-C23-01
TUEV Nord Cert GmbH, ATEX, TUEV_12_ATEX_106032X, EN 60079-0
Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

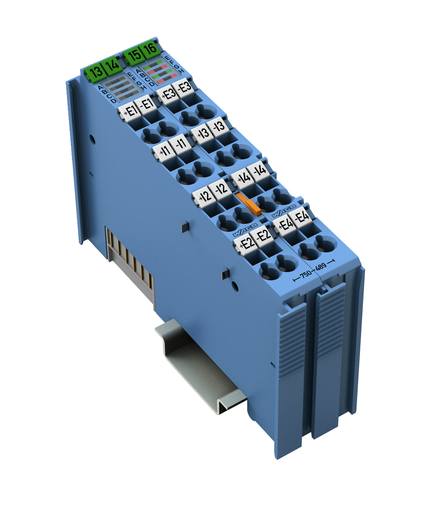

Specifications
Notes
Note: The analog output module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!
Measurement error (25 °C): In delivery state: ±0.2 % of the upper-range value (value achieved during calibration in operating environment 0 ≤ TA ≤ 55 °C); After user calibration: ±0.05 % of the upper-range value (only valid in the thermally stable operating state)
Temperature coefficient: ±0.001 %/K of the upper-range value
Intrinsic safety Ex i: Yes
Measurement range: RTDs: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Ni1000-TK5000; Resistors: 250 Ω, 500 Ω, 1 kΩ, 2 kΩ, 4 kΩ, PTC; Potentiometer setting: 0 … 100 %; Thermocouples: Type B (+250 … +1,820 °C); Type C (0 … +2,315 °C); Type E (-200 … +1,000 °C); Type J (-210 … +1,200 °C); Type K (-200 … +1,372 °C); Type N (-200 … +1,300 °C); Type R, S (-50 … +1,768 °C); Type T (-200 … +400 °C); mV sensor: ±30 mV; ±60 mV; ±120 mV; ±250 mV; ±500 mV; ±1,000 mV; ±2,000 mV; Thermistor: PTC; Resistor bridges (strain gauges): Uref: 2.4 V; Ud: ±15 mV, ±30 mV, ±60 mV
Cold junction compensation: Integrated
Supply voltage (system): 5 VDC; via data contacts
Power consumption (5 V system supply): 60 mA
Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Power consumption, field supply (module with no external load): 120 mA
Power loss Pl: 1,6 W
Isolation: Per EN/IEC 60079-11: 300 VAC system/supply; per EN/UL 61010-2-201: 1200 VDC system/supply/channel
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
Explosion Protection
Ex guideline: EN IEC 60079-0, -7, -11
Safety-relevant data (circuit): Uo = 4 V; Io = 13,46 mA; Po = 13,46 mW; Kennlinie: Linear
Reactances Ex ia IIC: Lo = 0.19 H; Co = 100 µF
Reactances Ex ia IIB: Lo = 0.78 H; Co = 1000 µF
Reactances Ex ia IIA: Lo = 1.57 H; Co = 1000 μF
Reactances Ex ia I: Lo = 2.57 H; Co = 1000 µF
Reactances (note): Reactance, if the internal inductance Li or capacitance Ci (without cable) of the connected device ≤ 1 % of the specified values
Connection Data
Connection technology: inputs/outputs: 16 x CAGE CLAMP®
