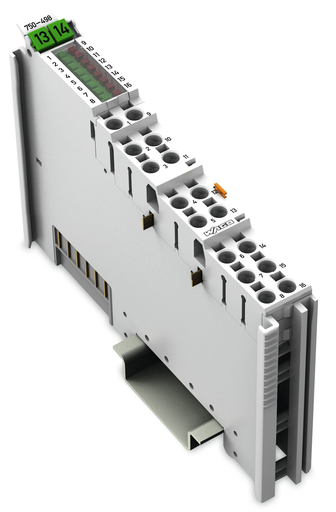

Features

Approvals

• Bureau Veritas S.A., BV, 66711/A0, Rules for class. of Steel Ships
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA00002K2, DNVGL-CG-339,Nov.2016
• Underwriters Laboratories Inc., UL, E175199 Sec11, UL 61010-2-201
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201

Specifications

Technical Data

• Number of analog inputs: 8
• Total number of channels (module): 8
• Signal type: Thermocouple || Low voltages
• Signal type (configurable): Yes
• Sensor connection: 8 x (2-wire)
• Data width: 8 x 16-bit data; 8 x 8-bit control/status (optional)
• Resolution (over entire range): 0,1 °C
• Conversion time: ≤100 ms (per channel), activated notch filter; ≤50 ms (per channel), deactivated notch filter
• Measurement error (25 °C): With cold junction compensation: ≤ ±1 K (type E, N, K, T, J) at ≥-50 °C; ≤ ±2 K (type S, R, C) at ≥100 °C; ≤ ±3 K (type B) at ≥350 °C; (Please find additional measurement error information in the manual.)
• Temperature error (max.) of the upper-range value: 0.05 %/K
• Temperature coefficient: Type K: ±0.05 K/K of the upper-range value; Voltage measurements: ±50 ppm/K of the upper-range value
• Sensor types: Type K, J, B, E, N, R, S, T, C; Voltage measurement: ±30 mV; ±60 mV; ±120 mV; ±240 mV
• Cold junction compensation: Module-internal based on a cold junction temperature measurement
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 100 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Isolation: 500 V system/field
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2

Connection Data

• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69 mm / 2.717 inch
• Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.824 MJ
• Weight: 48.900 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, EN 61131-2
• EMC emission of interference: Per EN 61000-6-3, EN 61131-2
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143944380
• Customs tariff number Sales Organisation Germany: 85389099990
