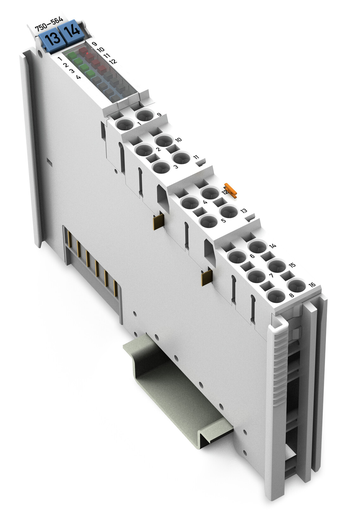

Features

Approvals

• TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079
• TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079
• Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• National Radio Research Agency, KC, MSIP-REM-W43-AOM750, Article 58-2, Clause 3
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
• Bureau Veritas S.A., BV, 66711/A0, Rules for class. of Steel Ships

Specifications

Technical Data

• Number of analog outputs: 4
• Total number of channels (module): 4
• Signal type: Voltage || Current
• Signal type (current): 0 … 10 mA; 2 … 10 mA; -10 … +10 mA; 0 … 20 mA; 4 … 20 mA; -20 … +20 mA; 0 … 22 mA; -22 … +22 mA; 0 … 12 mA; -12 … +12 mA
• Voltage signal type: 0 … 5 V; 1 … 5 V; -5 … +5 V; 0 … 10 V; 2 … 10 V; -10 … +10 V; 0 … 12 V; -12 … +12 V
• Actuator connection: 4 x (2-wire); Voltage outputs can optionally be connected in 4-wire technology via the sense lines.
• Resolution [bit]: 16 bits
• Data width: 4 x 16-bit data; 4 x 8-bit control/status (optional)
• Load impedance (voltage output): ≥ 1 kΩ
• Load impedance (current output): ≤ 600 Ω
• Conversion time (typ.): 3 ms
• Reference for measurement error: Voltage/Current
• Output error, reference temperature: 25 °C
• Output error, deviation (max.) of the upper-range value: 0.05 %
• Temperature coefficient: U: ±25 ppm/K of the output range value; I: ±50 ppm/K of the output range value
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 55 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Isolation: 500 V system/field
• Number of incoming power jumper contacts: 2
• Number of outgoing power jumper contacts: 2

Connection Data

• Connection technology: inputs/outputs: 16 x Push-in CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69 mm / 2.717 inch
• Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.809 MJ
• Weight: 51.000 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-3
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143933223
• Customs tariff number Sales Organisation Germany: 85389099990
