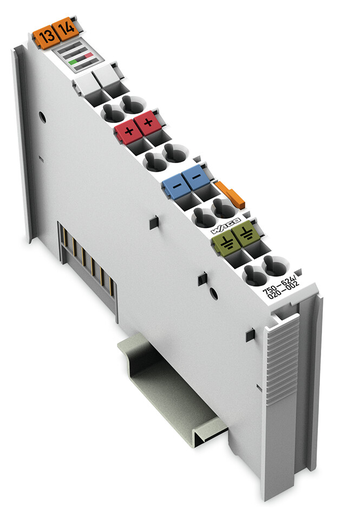

Features

• Pre-alarm 50 kΩ (±15 %)
• Main alarm 25 kΩ (±15 %)
• Hysteresis (typ.) 25 … 30 %
• Response time ≤ 5 s (typ. 2.5 s)
• Internal resistance DC (test circuit) >10 MΩ (test inactive), >90 kΩ (test active)
• Test current ≤180 μA (RF=0 Ω)
• Permissible system leakage capacitance ≤ 2 μF

Approvals

• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Lloyds Register EMEA, LR, 02/20026 (E6)
• Underwriters Laboratories Inc., UL, E175199 Sec10, UL 61010-2-201
• American Bureau of Shipping, ABS, 19-HG1821926
• Bureau Veritas S.A., BV, 66711/A0, Rules for class. of Steel Ships
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194

Specifications

Technical Data

• Signal type: Voltage
• Voltage signal type: 24 VDC
• Data width: 8-bit input; 8-bit output
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 29 mA
• Supply voltage (field): 24 VDC, SELV (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Power consumption, field supply (module with no external load): 16 mA
• Number of incoming power jumper contacts: 3
• Number of outgoing power jumper contacts: 3
• Current carrying capacity (power jumper contacts): 10 A

Connection Data

• Connection technology: field supply: 6 x CAGE CLAMP®
• Connection type (1): Field supply
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69.8 mm / 2.748 inch
• Depth from upper edge of DIN-rail: 62.6 mm / 2.465 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.881 MJ
• Weight: 56.943 g

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143826839
• Customs tariff number Sales Organisation Germany: 85389091890
