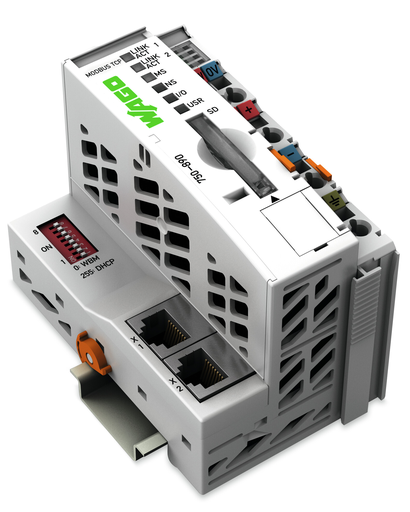

Features

Approvals

• Brjansker Zertifizierungsstelle, EAC, EAC RU C-DE.AM02.B.00163/19, TP TC 012/2011
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• TUEV Nord Cert GmbH, ATEX, TUEV_14_ATEX_148929_X, EN 60079
• CQST/CNEx, CCCEx, 2020312310000213, CNCA-C23-01
• TUEV Nord Cert GmbH, IECEx, IECEx_TUN_14.0035_X, IEC 60079-0
• American Bureau of Shipping, ABS, 19-HG1821926
• Underwriters Laboratories Inc., UL, E198726 Sec.1, UL 121201
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• Underwriters Laboratories Inc., UL, E175199 Sec11, UL 61010-2-201
• RINA Germany GmbH, RINA, ELE066419XG
• National Radio Research Agency, KC, MSIP-REM-W43-PFC750, Article 58-2, Clause 3
• Lloyds Register EMEA, LR, 02/20026 (E6)
• Bureau Veritas S.A., BV, 66711/A0, Rules for class. of Steel Ships

Specifications

Technical Data

• Communication: Modbus (TCP, UDP)
• ETHERNET protocols: HTTP(S) || BootP || DHCP || DNS || SNTP || FTP(S) || SNMP
• Visualization: Web Visu
• CPU: 32 bits
• Programming languages per IEC 61131-3: Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC)
• Programming environment: WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
• Configuration options: WAGO-I/O-CHECK || Web-Based Management || CODESYS Library
• Baud rate (communication/fieldbus 1): 10/100 Mbit/s
• Baud rate: 10/100 Mbit/s
• Transmission medium (communication/fieldbus): Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
• Transmission performance: Class D per EN 50173
• Program memory: 8 MB
• Data memory: 8 MB
• Non-volatile software memory: 32 kB
• Memory card type: SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)
• Memory card slot: Push-push mechanism; Cover lid (sealable)
• Number of modules per node (max.): 250
• Number of modules without a bus extension (max.): 64
• Input and output (fieldbus) process image (max.): 1020 Worte/1020 Worte
• Indicators: LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
• Supply voltage (system): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
• Input current (typ.) at nominal load (24 V): 500 mA
• Power supply efficiency (typ.) at nominal load (24 V): 90 %
• Power consumption (5 V system supply): 440 mA
• Total current (system supply): 1700 mA
• Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts
• Current carrying capacity (power jumper contacts): 10 A
• Number of outgoing power jumper contacts: 3
• Isolation: 500 V system/field

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP/UDP: 2 x RJ-45
• Connection technology: system supply: 2 x CAGE CLAMP®
• Connection technology: field supply: 6 x CAGE CLAMP®
• Connection type (1): System/field supply
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Connection technology: device configuration: 1 x Male connector; 4-pole

Physical Data

• Width: 61.5 mm / 2.421 inch
• Height: 100 mm / 3.937 inch
• Depth: 71.9 mm / 2.831 inch
• Depth from upper edge of DIN-rail: 64.7 mm / 2.547 inch

Mechanical Data

• Weight: 151.600 g
• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: Without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.)
• Relative humidity (without condensation): 95 %
• Mounting position: Any
• Mounting type: DIN-35 rail
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Fire load: 2.240 MJ
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143821407
• Customs tariff number Sales Organisation Germany: 85371091990
