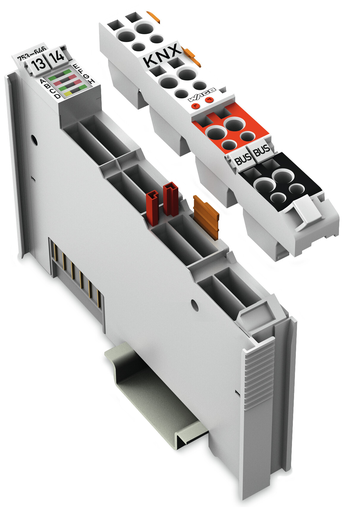

Features

Approvals

• RINA Germany GmbH, RINA, ELE066419XG
• Lloyds Register EMEA, LR, 02/20026 (E6)
• Bureau Veritas S.A., BV, 30389/B0 BV
• UL International Netherlands B.V., UL, E175199 Sec.1, UL 508
• Nippon Kaiji Kyokai, NK, TA17255M
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAA0000194
• National Radio Research Agency, KC, MSIP-REM-W43-MSM750, Article 58-2, Clause 3
• Polski Rejestr Statków, PRS, TE/2236/880590/19
• American Bureau of Shipping, ABS, 19-HG1821926

Specifications

Technical Data

• Device specification: KNX/TP1 Bus Specification: 1.0
• Device-specific: Number of group addresses: 254; Number of communication objects: 253; Number of associations: 254
• Power consumption (typ.): 5 mA (KNX)
• Baud rate: 9.6 kBd (KNX)
• Data width: 24 bytes
• Power supply: KNX: via KNX power supply unit
• Commissioning: WAGO-I/O-PRO V2.3
• Advanced diagnostics: Via FbKNX_Master_646 function block (device mode)
• Supply voltage (system): 5 VDC; via data contacts
• Power consumption (5 V system supply): 25 mA
• Isolation: 2.5 kV (rms)

Connection Data

• Connection technology: inputs/outputs: 8 x CAGE CLAMP®
• Connection type (1): Inputs/outputs
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch
• Connection point (other designation): Programming button; Bridge 2/6

Physical Data

• Width: 12 mm / 0.472 inch
• Height: 100 mm / 3.937 inch
• Depth: 69 mm / 2.717 inch
• Depth from upper edge of DIN-rail: 61.8 mm / 2.433 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Wiring interface: Pluggable

Material Data

• Color: Light gray
• Housing material: Polycarbonate; polyamide 6.6
• Fire load: 0.960 MJ
• Weight: 55.900 g
• Conformity marking: CE

Environmental Requirements

• Surrounding air temperature (operation): 0 … 55 °C
• Surrounding air temperature (storage): -25 … 85 °C
• Protection type: IP20
• Pollution degree (5): 2 per IEC 61131-2
• Operating altitude: 0 … 2000 m
• Mounting position: Horizontal (standing/lying); vertical
• Relative humidity (without condensation): 95 %
• Vibration resistance: 4g per IEC 60068-2-6
• Shock resistance: 15g per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2, marine applications
• EMC emission of interference: Per EN 61000-6-3, marine applications
• Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
• Permissible H2S contaminant concentration at a relative humidity 75 %: 10 ppm
• Permissible SO2 contaminant concentration at a relative humidity 75 %: 25 ppm

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454778033
• Customs tariff number Sales Organisation Germany: 85389099990
