Features

• Halogen-free TPE
• Cat. 6A S/FTP
• Highly flexible
• 50 µinch gold plating in the contact area
• Mechanically/Electrically tested
• 4C Channel Link Test
• Wrap-around label for clear traceability
• Easy plug unlocking

Specifications

Technical Data

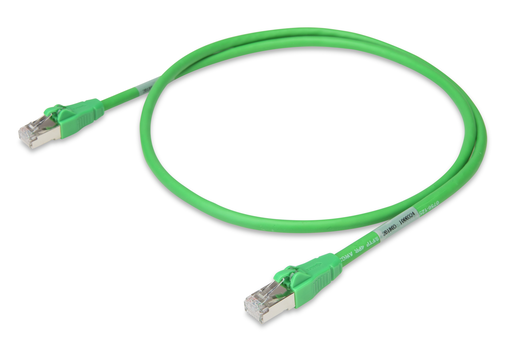

• Connection type: RJ-45 plug - RJ-45 plug
• Cable connection direction to mating direction: 0 °
• Cable length: 10 m
• Baud rate: 10000 Mbit/s
• Operating voltage: 80 V
• Operating current: 0.72 A
• Rated surge voltage: 500 V (wire/wire/shield rms 50 Hz 1 min)
• Insulation resistance: ≥ 1x108 Ωxkm
• Conductor resistance: < 142 Ω/km

Mechanical Data

• Bending radius: 10 mm (min.)
• Bending cycles: 8500 Mio.
• Sheathed cable color: Green
• Sheathed cable diameter: 6 … 6.4 mm
• Sheath material: LSOH TPE, halogen-free per IEC 60754-2, flame-retardant per IEC 60332-1, low-smoke per IEC 61034
• Halogen-free: Yes
• Shield: Overlapped aluminum-laminated foil and tinned copper braid (PiMF)
• Conductor design: Bare copper wire (7 x 0.16 mm)
• Conductor insulation: PE (halogen-free)
• Contact material: CuZn
• Contact plating: CuNi/Au; 50 µinch gold plating
• Mating cycles (max.): 1200
• Weight: 361.200 g
• Color: Green

Environmental Requirements

• Surrounding air (operating) temperature (dynamic): -40 … +80 °C
• Surrounding air (operating) temperature (static): -40 … +80 °C
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: CN
• GTIN: 4055143762991
• Customs tariff number Sales Organisation Germany: 85444210000
