Features

• PUR VT, halogen-free
• Suitable for drag chains
• High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
• High chemical resistance
• Cable used: UL listed

Approvals

• Underwriters Laboratories Inc., UL, E519602, UL 2238

Specifications

Technical Data

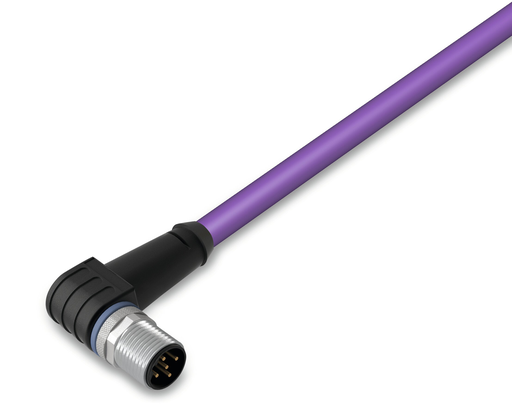

• Connection type: M12 plug - Free end
• Pole No.: 5
• Cable connection direction to mating direction: 90 °
• Connector interface coding (cable/adapter) 1 1: A-coded
• Cable length: 2 m
• Communication/fieldbus: CANopen
• Communication/Fieldbus (2): DeviceNet
• Operating voltage: ≤ 300 V
• Operating current: 4 A
• Rated surge voltage: 2 kV
• Contact resistance: 10 mΩ
• Insulation resistance: ≥ 2 x 108 Ω/km
• Conductor resistance: ≤ 57 Ω/km (22 AWG) + ≤ 79 Ω/km (24 AWG)

Mechanical Data

• Bending radius: 5 x cable diameter (min.)
• Bending cycles: 5 Mio.
• Drag chain suitability: Yes
• Sheathed cable diameter: 6.6 … 7.2 mm
• Type code: L-02YC11Y 2xAWG24 + 2xAWG22/1.4-120 VI FRNC, geschirmt
• Shield: Tinned copper braid, optical coverage approx. 85 %
• Conductor design: Bare copper wire (19 x 0.125 mm)
• Conductor insulation: PE (halogen-free)
• Housing material: TPU/TPU, black (~ RAL 9005)
• Tightening torque: 1 Nm
• Weight: 151.000 g
• Color: Violet

Environmental Requirements

• Surrounding air (operating) temperature (dynamic): -40 … +80 °C
• Surrounding air (operating) temperature (static): -40 … +80 °C
• Protection type: IP67
• Pollution degree (5): 3/2 per IEC 60664-1
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454640927
• Customs tariff number Sales Organisation Germany: 85444290900
