Features

• 2 x ETHERNET port for connecting to field devices and the engineering tool
• 2 x USB port for optional connection of a USB stick, mouse or keyboard
• Audio interface for connecting a headphone or loudspeaker
• CAN for controlling field devices
• RS-232/485 interface for controlling field devices equipped with a serial interface
• 4 x digital input/output for reading/triggering digital signals
• Power-failure-proof storage component

Approvals

• DNV Germany GmbH, DNV, TAA00001FS, DNVGL-CG-339,Dec.2019
• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

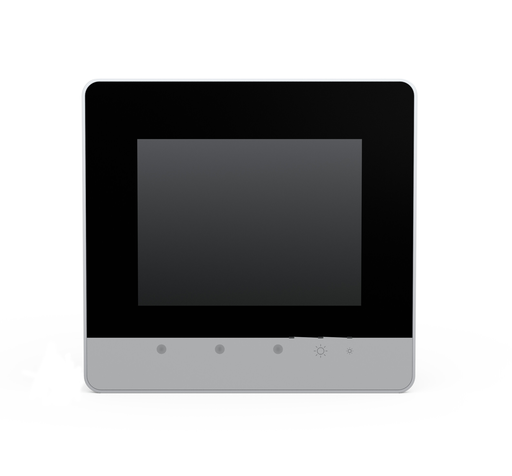

• Display diagonal: 14.5 cm (5.7 Inches)
• Display: Resistive touchscreen
• Display colors: 262,000 colors
• Graphics resolution: (640 x 480) px
• Contrast ratio: 300:1
• Viewing angle (horizontal/vertical): 80° / 80°
• Brightness: 630 cd/m2
• Visualization: Webserver || Web Visu || Target Visu
• ETHERNET protocols: DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
• Communication: EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus TCP Master/Slave || CANopen || Modbus (UDP) || RS-232 serial interface || RS-485 serial interface || MQTT || EtherCAT Master, requires an additional license || BACnet/IP, requires an additional license
• Operating system: Real-time Linux (with RT-Preempt patch)
• Processor: ARM® Cortex® A9 Quadcore 1.0 GHz
• Programming environment: e!COCKPIT (based on CODESYS V3)
• Main memory (RAM): 2048 MB
• Internal memory (flash): 4096 MB
• Program memory: 32 MB
• Data memory: 128 MB
• Non-volatile software memory: 128 kB
• Memory card type: MicroSD (max. 2 GB); microSDHC (max. 32 GB)
• Indicators: Three-color LED (red, green, blue)
• Controls: Resistive touch panel; 2 capacitive keys; proximity sensor
• Supply voltage: 24 VDC, SELV (18 … 31.2 V); with reverse voltage protection
• Operating power: 7.0 W, without USB load; 12.0 W, with USB load

Connection Data

• Connection technology: communication/fieldbus: Modbus TCP/UDP: 2 x RJ-45; EtherNet/IPTM: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; Modbus UDP: 2 x RJ-45; RS-232 + RS-485 serial interface: 1 x D-sub 9 socket; USB: 2 x USB 2.0 host (type A)
• Connection technology: supply: 1 x included 734-103 female connector featuring three CAGE CLAMP® connections

Physical Data

• Width: 172 mm / 6.772 inch
• Height: 163 mm / 6.417 inch
• Depth: 78 mm / 3.070 inch
• Panel cutout (W x H): (157 x 148) mm

Mechanical Data

• Weight: 1221.000 g

Environmental Requirements

• Surrounding air temperature (operation): -20 … 55 °C (when mounted vertically; −20 … +50 °C, other mounting positions)
• Surrounding air temperature (storage): -20 … 80 °C
• Protection type: IP65
• Note on protection type: IP65 (front side); IP20 (rear side), per EN 60529
• Relative humidity (without condensation): 90 %
• Mounting type: Clamping elements (included) or VESA mount (4 x M4x8)
• Fire load: 0.000 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143839464
• Customs tariff number Sales Organisation Germany: 84714100000
