Features

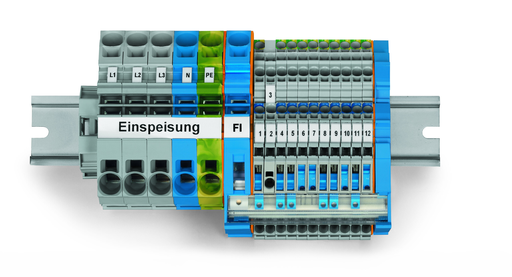

• Suitable for a sub-distribution board equipped with a residual current breaker (RCB); It includes all required components for wiring supply terminal blocks, as well as connecting 9 AC circuits and 1 three-phase circuits
• Distribution of ground fault potentials via one 10 x 3 mm N-busbar; Separation of N-potentials for insulation resistance measurement via N-disconnect slide links within the multilevel installation terminal block
• 10 x Multilevel installation terminal block; NT/L/PE; 4 mm² (2003‑7641)
• 1 x Multilevel installation terminal block; L/L; 4 mm² (2003‑7642)
• 1 x End and intermediate plate (2003‑7692)
• 3 x 2-conductor supply terminal block for distribution boxes; gray; 16 mm² (2016‑7601)
• 1 x 2-conductor supply terminal block for distribution boxes; blue; 16 mm² (2016‑7604)
• 1 x 2-conductor ground terminal block; green-yellow; 16 mm² (2016‑7607)
• 1 x End and intermediate plate (2016‑7692)
• 1 x 1-conductor N-disconnect terminal block; blue; 16 mm² (2016‑7714)
• 1 x End and intermediate plate (2016‑7792)
• 1 x Screwless end stop; 10 mm wide (249‑117)
• 1 x Busbar carrier; with end stop function (2009‑305)
• 1 x Busbar; tin-plated; 0.2 m (210‑133)
• 1 x N-busbar cover; transparent; 0.2 m (777‑303)
• 1 x Marking strips; white; 0.5 m (2009‑110)
• 1 x WMB marking card; 1 … 50 (793‑5566)
• 1 x WMB marking card; L1, L2, L3, N, PE (793‑5472)
• 1 x Fiber-tip pen (210‑110)

Specifications

Material Data

• Fire load: 4.533 MJ
• Weight: 471.593 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: QU
• GTIN: 4045454229849
• Customs tariff number Sales Organisation Germany: 80808080888
