Features

• Multilevel installation terminal blocks with complete accessories for three standard distributions in single family and multi-family buildings

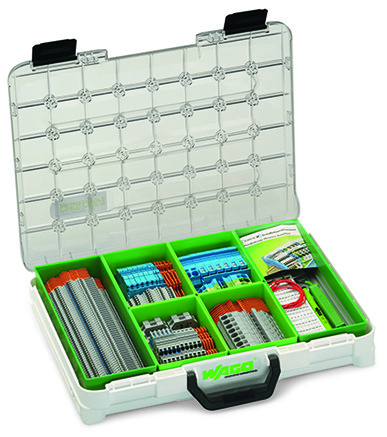

• In the Sortimo®-T-BOXX – matching the Sortimo® Globelyst vehicle equipment system
• Mobile storage for your construction site!
• 50 x Multilevel installation terminal block; NT/L/PE; 4 mm² (2003‑7641)
• 10 x Multilevel installation terminal block; L/L; 4 mm² (2003‑7642)
• 10 x End and intermediate plate (2003‑7692)
• 9 x 2-conductor supply terminal block for distribution boxes; gray; 16 mm² (2016‑7601)
• 3 x 2-conductor supply terminal block for distribution boxes; blue; 16 mm² (2016‑7604)
• 3 x 2-conductor ground terminal block; green-yellow; 16 mm² (2016‑7607)
• 10 x End and intermediate plate (2016‑7692)
• 6 x 1-conductor N-disconnect terminal block; blue; 16 mm² (2016‑7714)
• 5 x End and intermediate plate (2016‑7792)
• 5 x Screwless end stop; 10 mm wide (249‑117)
• 6 x Busbar carrier; with end stop function (2009‑305)
• 5 x Busbar carrier; not suitable for use as end stop (2009‑304)
• 1 x Busbar; tin-plated; 0.25 m (210‑133)
• 1 x N-busbar cover; transparent; 0.25 m (777‑303)
• 10 x Staggered jumper; 3-way (2002‑473)
• 10 x Staggered jumper; 5-way (2002‑475)
• 10 x Staggered jumper; 7-way (2002‑477)
• 10 x Push-in type jumper bar; 2-way (2002‑402)
• 5 x Push-in type jumper bar; 2-way (2016‑402)
• 2 x Test plug; 2 mm Ø (210‑136)
• 2 x Testing tap; for max. 2.5 mm² (2009‑182)
• 5 x Lock-out; prevents reclosing of slide link; for 2002 and 2005 Series (2005‑7300)
• 5 x Lock-out; prevents reclosing of slide link; for 2006 and 2016 Series (2006‑7300)
• 4 x Marking strips; white; 0.5 m (2009‑110)
• 2 x WMB marking card; 1 … 50 (793‑5566)
• 1 x WMB marking card; L1, L2, L3, N, PE (793‑5472)
• 2 x WMB marking card; unbedruckt (793‑5501)
• 1 x Fiber-tip pen (210‑110)
• 1 x Operating tool (2009‑310)
• 1 x Sortimo®-T-BOXX

Specifications

Material Data

• Fire load: 40.025 MJ
• Weight: 5003.107 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: QU
• GTIN: 4045454868567
• Customs tariff number Sales Organisation Germany: 80808080888
