Features

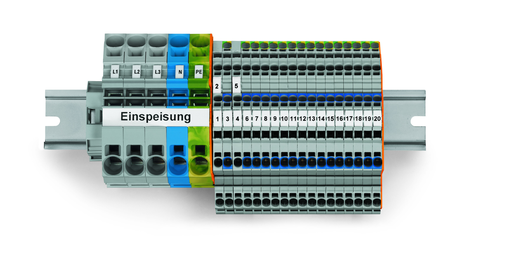

• For main distribution with separate RDC/LS switches for each circuit; It includes all required components for wiring supply terminal blocks and connecting 14 AC circuits and 2 three-phase circuits
• Connection of L- and N-conductors for RDC/LS switches to the circuits via multilevel installation terminal blocks without disconnection possibility. Separation of N-potentials for insulation resistance measurement via RCD/LS switches
• 16 x Multilevel installation terminal block; N/L/PE; 4 mm² (2003‑7646)
• 2 x Multilevel installation terminal block; L/L; 4 mm² (2003‑7642)
• 1 x End and intermediate plate (2003‑7692)
• 3 x 2-conductor supply terminal block for distribution boxes; gray; 16 mm² (2016‑7601)
• 1 x 2-conductor supply terminal block for distribution boxes; blue; 16 mm² (2016‑7604)
• 1 x 2-conductor ground terminal block; green-yellow; 16 mm² (2016‑7607)
• 1 x End and intermediate plate (2016‑7692)
• 2 x Screwless end stop; 10 mm wide (249‑117)
• 1 x Marking strips; white; 0.5 m (2009‑110)
• 1 x WMB marking card; 1 … 50 (793‑5566)
• 1 x WMB marking card; L1, L2, L3, N, PE (793‑5472)
• 1 x Fiber-tip pen (210‑110)

Specifications

Material Data

• Fire load: 5.692 MJ
• Weight: 495.138 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: QU
• GTIN: 4045454962319
• Customs tariff number Sales Organisation Germany: 80808080888
