Features

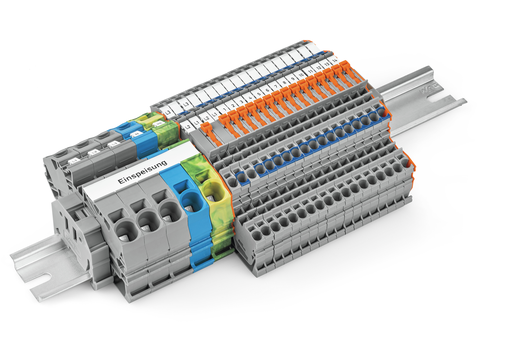

• For the main distribution with several RCD switches and small circuit groups; includes all required components for wiring supply terminal blocks and connecting 14 AC circuits and two 3-phase circuits
• The ground fault potentials are supplied for each individual terminal block. The ground fault potentials of adjacent terminal blocks can be commoned using optional jumpers to create small circuit groups. N-potentials can be disconnected for insulation resistance measurement via knife disconnects within the multilevel installation terminal block
• 16 x Multilevel installation terminal block; NT/L/PE; 4 mm² (2003‑6641)
• 2 x Multilevel installation terminal block; L/L; 4 mm² (2003‑6642)
• 1 x End and intermediate plate (2003‑6692)
• 3 x 2-conductor supply terminal block for distribution boxes; gray; 16 mm² (2016‑7601)
• 1 x 2-conductor supply terminal block for distribution boxes; blue; 16 mm² (2016‑7604)
• 1 x 2-conductor ground terminal block; green-yellow; 16 mm² (2016‑7607)
• 1 x End and intermediate plate (2016‑7692)
• 2 x Screwless end stop; 10 mm wide (249‑117)
• 15 x Push-in type jumper bar; 2-way (2002‑402)
• 2 x Test plug adapter N/L; gray (2003‑499)
• 2 x Test plug adapter N; gray (2003‑500)
• 2 x Test plug adapter; for 4 mm Ø test plugs (2009‑174)
• 1 x Marking strips; white; 0.5 m (2009‑110)
• 1 x WMB marking card; 1 … 50 (793‑5566)
• 1 x WMB marking card; L1, L2, L3, N, PE (793‑5472)
• 1 x Fiber-tip pen (210‑110)

Specifications

Material Data

• Fire load: 7.291 MJ
• Weight: 609.317 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: QU
• GTIN: 4050821675099
• Customs tariff number Sales Organisation Germany: 80808080888
