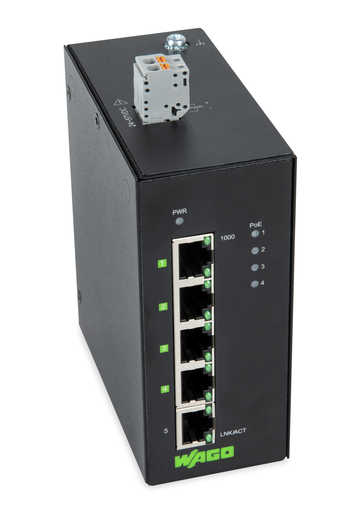

Features

• 5 ETHERNET ports, 10/100/1000 Mbit/s, autonegotiation
• 4 PoE+ ports (IEEE 802.3at)
• Front-panel diagnostic LEDs
• Supports Auto-MDI/MDI-X functions
• Full/half-duplex transfer modes for each port
• Store-and-forward switching method
• Integrated address look-up table, supports up to 8000 absolute MAC addresses
• Overvoltage protection
• IEEE 802.3x flow control in full-duplex mode
• LED indicator for PoE diagnostics
• DIN-35 rail mounting

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

• Number of 1000BASE-T ports: 5
• Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3ab 1000BASE-T || IEEE 802.3x Flow Control || IEEE 802.3af Power over Ethernet (PoE) || IEEE 802.3at High Power over Ethernet (PoE+) || IEEE 802.1p Prioritization
• MAC table (size): 8000 addresses
• Jumbo frame size: 10000 Byte
• Supply voltage: 24 … 57 VDC
• Power consumption (max.): 13 W
• Power consumption note: 133 W with 4 PoE
• Baud rate: Copper cable: 10/1000 Mbit/s
• Transmission medium (communication/fieldbus): Copper cable: Cat. 5e or higher, 100 m maximum cable length
• Topology: Star
• Indicators: Device: LED (PWR) green: Power supply; LED (PoE 1 … 4) green: Power over Ethernet; per port: LED (1000, LNK/ACT) green: Status 1000 Mbit/s, LNK/ACT ports 1 … 5

Connection Data

• Connection technology: communication/fieldbus: Copper cable: 5 x RJ-45
• Connection technology: supply: 1 x Built-in male connector: 231-432/001-000; included female connector (MCS Connectors): 2231-102/026-000

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 104 mm / 4.094 inch
• Depth: 115 mm / 4.528 inch

Mechanical Data

• Weight: 550.000 g
• Color: Black

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Protection type: IP30
• Relative humidity (without condensation): 95 %
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: Per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Fire load: 0.087 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: TW
• GTIN: 4055143933179
• Customs tariff number Sales Organisation Germany: 85176200000
