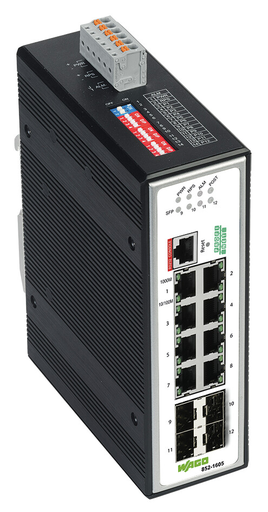

Features

• Web-based/SNMP management
• Redundant DC power supply
• Power supply range: 12 … 60 VDC
• DIP switches to set alarm functions
• Full compliance with IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1d, 802.1w, 802.1s, 802.1Q, 802.1p standards
• Media redundancy protocol (MRP) as manager (MRM) or client (MRC), redundant ring
• Non‐blocking, store‐and‐forward switching, rapid spanning tree protocol (RSTP)
• Autonegotiation and AUTO-MDI/MDIC (crossover)
• VLAN (802.1Q) VID
• IGMP snooping
• Port configuration, status, statistics
• Port trunking and multi-port mirroring
• SNMP v1/v2c/v3 and RMON
• Time synchronization via SNTP
• Storm control, bandwidth limitation and loop detection

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Technical Data

• Switching mode: Store‐and‐forward; non-blocking
• Number of 100Base-TX ports: 8
• Number of 1000Base SX/LX ports: 4
• Communication standards: IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3ab 1000BASE-T || IEEE 802.3z 1000BASE-SX/LX || IEEE 802.3x Flow Control || IEEE 802.1d Spanning Tree Protocol (STP) || IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) || IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) || IEEE 802.1Q VLAN Tagging || IEEE 802.1p Class of Service || IEEE 802.1ab Link Layer Discovery Protocol (LLDP) || PROFINET Conformance Class B
• Redundancy function: Redundant DC power supply; STP; RSTP; MSTP; Media redundancy protocol as manager or client
• Configuration options: DIP switch for signal contact || Web-Based Management || Command Line Interface || SNMPv1/v2c/v3
• Diagnostics: Signal contact; Port status; Port statistics; Port load; Traffic monitor; SFP information; Syslog; SNMP traps; PN diagnostics (cyclic and acyclic)
• MAC table (size): 16000 addresses
• Jumbo frame size: 10000 Byte
• Supply voltage: 12 … 60 VDC
• Power consumption (max.): 12 W
• ESD (contact/air discharge): 8 KV / 15 KV
• Baud rate: Copper cable: 10/1000 Mbit/s; Fiber optic:1000 Mbit/s
• VLAN: Port-based and tag-based (4k VIDs)

Connection Data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45; Fiber optic: 4 x SFP; LC fiber-optic connector
• Connection technology: supply: 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000

Physical Data

• Width: 50 mm / 1.969 inch
• Height: 162 mm / 6.378 inch
• Depth: 120 mm / 4.724 inch

Mechanical Data

• Weight: 945.000 g
• Color: Black metallic

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 80 °C
• Protection type: IP30
• Relative humidity (without condensation): 95 %
• Mounting type: DIN-35 rail
• Vibration resistance: Per IEC 60068-2-6
• Shock resistance: Per IEC 60068-2-27
• EMC immunity to interference: Per EN 61000-6-2
• EMC emission of interference: Per EN 61000-6-4
• Fire load: 0.234 MJ

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: TW
• GTIN: 4055143918701
• Customs tariff number Sales Organisation Germany: 85176200000
