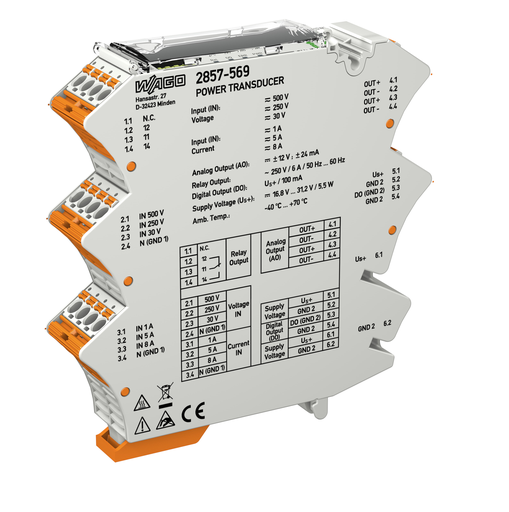

Features

• A relay with changeover contact reacts to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values).
• Adjustable software filter
• Simulation of input/output response via WAGO Interface Configuration Display
• Analog unipolar/bipolar signals (current/voltage) at output
• Additional digital signal output for configured measurement range limits
• The digital output can be configured as a frequency generator or pulse output (S0 interface).

Approvals

• Underwriters Laboratories Inc., UL, E175199, UL 61010-2-201

Specifications

Notes

• Note: This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) US+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 6 A is not exceeded.Additional setting options via WAGO Interface Configuration Software or WAGO Configuration Display

Configuration

• Configuration options: WAGO Interface Configuration Software || WAGO Configuration Display

Input

• Input signal type: Voltage || Current
• Input signal (voltage): AC/DC 500 V (IN 2.1; per EN 61010-1); AC/DC 300 V (IN 2.1; per UL 61010-1); AC/DC 250 V (IN 2.2) ; AC/DC 30 V (IN 2.3)
• Input signal (current): AC/DC 1 A (IN 3.1); AC/DC 5 A (IN 3.2) ; AC/DC 8 A (IN 3.3)
• Frequency range: 15 … 400 Hz
• Input current (max.): 1.2 × IN (≤ 60 °C); 1 × IN (60 … 70 °C)
• Input voltage (max.): 1.2 × UN
• Response threshold (voltage): 500 mVAC / 600 mVDC (IN 2.1) || 50 mVAC / 500 mVDC (IN 2.2) || 20 mVAC / 100 mVDC (IN 2.3)
• Response threshold (current): 1.5 mA AC / 7.5 mA DC (IN 3.1) || 3 mA AC / 10 mA DC (IN 3.2) || 7.5 mA AC / 12 mA DC (IN 3.3)
• Resolution (voltage): 50 mV (IN 2.1) || 30 mV (IN 2.2) || 5 mV (IN 2.3)
• Resolution (current): 1 mA (for all measurement ranges)

Output – Analog

• Output signal type: Current || Voltage
• Output signal (voltage): ± 12 V (SELV)
• Output signal (current): ±24 mA (SELV)
• Load impedance (voltage output): ≥ 2 kΩ
• Load impedance (current output): ≤ 600 Ω

Output – Digital

• Switching voltage (DO) (max.): Supply voltage (applied): −0.3 V
• Continuous current (DO) (max.): 100 mA (no internal restriction)
• Number of switching thresholds (DO): 2 (max.)
• Configurable rise/fall delay time (DO): 0 … 60 s (via software)
• Configurable functions (DO): Disabled || US/GND switching || Threshold value switch || Frequency generator || Pulse output (S0 interface)
• Setting range (frequency generator): 0.3 … 100 Hz
• Setting range (pulse output): 1000 … 1 Impulse/kW

Output – Relay

• Number of changeover/switchover contacts: 1
• Switching voltage (max.): AC 250 V
• Limiting continuous current (relay; module assembly): 6 A (≤ 60 °C); 3 A (60 … 70 °C)
• Dielectric strength, open contact (AC, 1 min): 1 kVrms
• Number of switching thresholds (relay): 1 or 2 (adjustable)
• Configurable rise/fall delay time (relay): 0 … 60 s (via software)

Signal Processing

• Measurement method: True RMS measurement (TRMS)
• Measured variables (calculated): Active power || Apparent power || Reactive power || Mains frequency || Phase angle
• Limit frequency: 2 kHz
• Software filter (adjustable): Filter level: 1 … 30
• Step response (max.): 350 ms (for default settings)

Measurement Error

• Transmission error (max.): ≤ 0.5 % for current and voltage (of the full scale value)

Supply

• Power supply type: 24 VDC
• Nominal supply voltage US: DC 24 V (SELV)
• Supply voltage range: ±30 %
• Power consumption at nominal supply voltage: ≤ 70 mA (+ IDO)

Test Voltage

• Test voltage (input IN 2.1/relay output; per EN 61010-1): 5.4 kVAC ; 50 Hz; 5 s || 3.6 kVAC; 50 Hz; 1 min
• Test voltage (input IN 2.1/relay output; per UL 61010-1): 3.51 kVAC; 60 Hz; 1 min
• Test voltage (input/supply, analog output/relay output): 3.51 kVAC; 50 … 60 Hz; 1 min
• Test voltage (supply/analog output): 3.6 kVAC; 50 … 60 Hz; 1 min

Insulation Parameters Per En/Ul 61010-1

• Line-to-neutral conductor voltage (AC) max.: 300 V
• Overvoltage category: III
• Pollution degree: 2
• Insulation type (input/supply, analog output/relay output): Reinforced insulation

Insulation Parameters Per En 61010-1

• Line-to-neutral conductor voltage (AC) max.: 600 V
• Overvoltage category: III
• Pollution degree: 2
• Insulation type (input IN 2.1/relay output): Reinforced insulation
• Insulation type (input/supply, analog output/relay output): Double insulation (impedance and basic insulation) || Requirement: The N (GND 1) input is dangerous when active!

Connection Data

• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: picoMAX® 5.0
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inch

Physical Data

• Width: 22.5 mm / 0.886 inch
• Height: 110 mm / 4.331 inch
• Depth from upper edge of DIN-rail: 107 mm / 4.213 inch

Mechanical Data

• Mounting type: DIN-35 rail

Material Data

• Fire load: 1.796 MJ
• Weight: 149.000 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 70 °C
• Surrounding air temperature (storage): -40 … 85 °C
• Temperature range of the connecting cable according to EN 61010-2-201: ≥ (Tsurrounding air + 25 K)
• Temperature range of connecting cable per UL 61010-2-201 (min.): 95 °C
• Relative humidity: 5 … 85 % (non-condensing)
• Operating altitude (max.): 2000 m

Standards And Specifications

• Conformity marking: CE
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3
• EMC emission of interference: EN 61000-6-3; EN 61326-2-3
• Standards/Specifications: EN 61010-1 || UL 61010-1 || UL 61010-2-201

Commercial Data

• Packaging type: Bag
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143907323
• Customs tariff number Sales Organisation Germany: 85437090300
