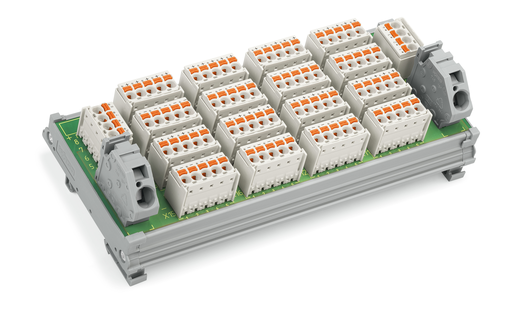

Features

• May be used with electronic circuit breakers for 24 and 0 VDC power distribution, as a substitute for rail-mount terminal blocks
• Pre-wiring and electrical isolation of current paths via pluggable picoMAX® Female Headers
• Optional coding pins (2092-1610) protect against any inadvertent mixing of female headers
• Optional gripping plates with sliding connector release (2092-1601/002-000 or 2092-1602/002-000) provide conductor strain relief
• 0 V may be supplied to the adjacent modules via comb-style jumper bar (745-682) (Derating with jumper bar: -1 A/K > 60°C surrounding air temperature)

Specifications

Electrical Data

• Nominal operating voltage: DC 24 V
• Current per connection (max.): 10 A
• Total current per potential (max.): 10 A
• Total current 0 V (max.): 76 A

Connection Data

• Total number of potentials: 8
• Connection type (1): Power supply 0 V
• Mating direction: 45°
• Connection technology: CAGE CLAMP®
• WAGO Connector: WAGO 745 Series
• Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
• Strip length: 12 … 13 mm / 0.47 … 0.51 inch
• Connection type 2: Power supply 24 V; connection points
• Mating direction (2): 45°
• Connection technology 2: Push-in CAGE CLAMP®
• WAGO Connector 2: picoMAX® 5.0 (WAGO 2092 Series)
• Solid conductor 2: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor 2: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length 2: 9 … 10 mm / 0.35 … 0.39 inch
• Note (conductor cross-section): 12 AWG: THHN, THWN

Physical Data

• Width: 154 mm / 6.063 inch
• Height: 85 mm / 3.346 inch
• Depth from upper edge of DIN-rail: 49 mm / 1.929 inch

Mechanical Data

• Mounting type: DIN-35 rail
• Housing design: Mounting carrier

Material Data

• Fire load: 3.325 MJ
• Weight: 226.906 g

Environmental Requirements

• Surrounding air temperature (operation): -25 … 70 °C (without condensation)
• Surrounding air temperature (storage): -40 … 85 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143107679
• Customs tariff number Sales Organisation Germany: 85369010000
