Features

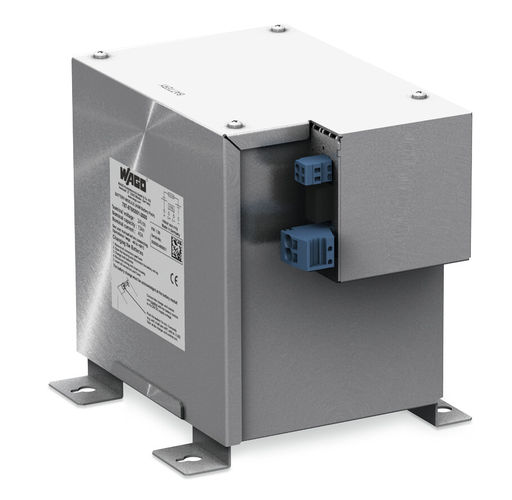

• Pure lead battery module: 2 x Genesis EPX battery per module
• Intelligent battery management (battery control)
• Optional coated PCB
• Pluggable connection technology (WAGO MULTI CONNECTION SYSTEM)

Specifications

Input

• Nominal input voltage Ui nom: DC 24 V

Output

• Nominal output voltage Uo nom: DC 24 V
• Nominal output current Io nom: 40 A

Energy Storage System

• Battery capacity: 13 Ah
• Charging current: ≤ 5 A
• End-of-charge voltage: DC 27 V (25 °C)

Signaling And Communication

• Signaling: Battery control (C+; C-)

Circuit Protection

• Internal fuse: 2 x T 25 A

Safety And Protection

• Protection class: III
• Protection type: IP20 (per EN 60529)
• Overvoltage category: I
• Pollution degree: 2
• Parallel operation: Yes
• Service life (typ.): 15 / 8 / 4 a (20 / 30 / 40 °C)

Connection Data

• Connection type (1): Input/output
• Connection technology: Push-in CAGE CLAMP®
• WAGO Connector: WAGO 831 Series
• Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Strip length: 13 … 15 mm / 0.51 … 0.59 inch
• Connection type 2: Battery control
• Connection technology 2: CAGE CLAMP®
• WAGO Connector 2: WAGO 231 Series
• Solid conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor 2: 0.08 … 2.5 mm² / 28 … 12 AWG
• Strip length 2: 8 … 9 mm / 0.31 … 0.35 inch
• Line length (max.): 3 m

Physical Data

• Width: 217 mm / 8.543 inch
• Height: 186 mm / 7.323 inch
• Depth: 199.5 mm / 7.854 inch

Mechanical Data

• Mounting type: Direct screw connection

Material Data

• Fire load: 0.000 MJ
• Weight: 12300.000 g

Environmental Requirements

• Surrounding air temperature (operation): -40 … 60 °C
• Surrounding air temperature (storage): -40 … 60 °C
• Relative humidity: 5 … 80 % (no condensation permissible)
• Self-discharging: 3 % per month at 20 °C
• Commissioning: < 6 months at 30 … 40 °C

Standards And Specifications

• Conformity marking: CE

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4055143739177
• Customs tariff number Sales Organisation Germany: 85044082900
